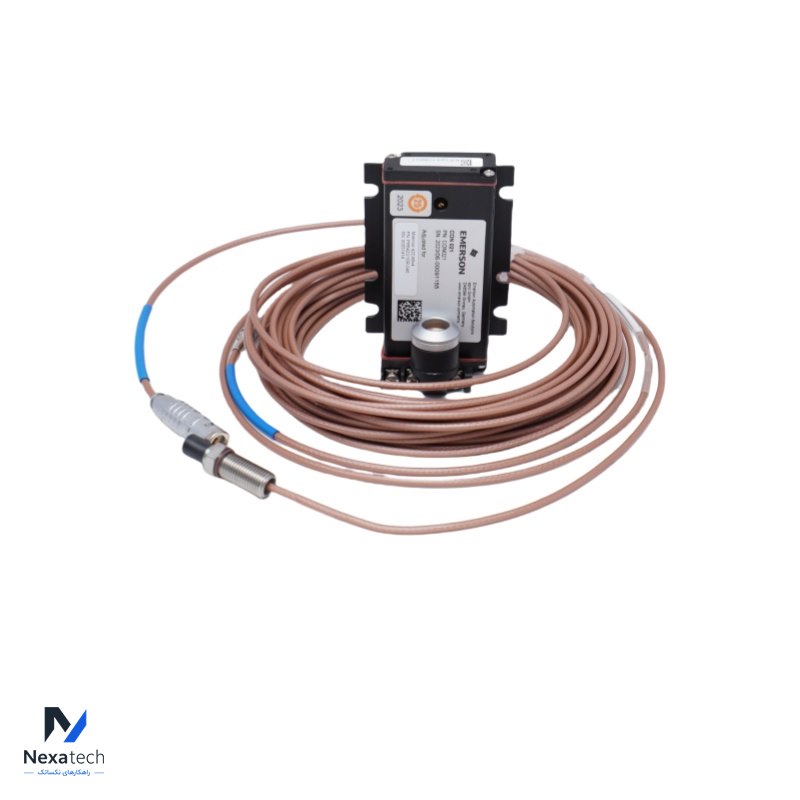

EPRO PR6423/10R-040 CON021 8mm Eddy Current Sensor
توضیحات محصول
مشخصات فنی
| Brand Name: | EPRO | ||
| Model Number: | PR6423/10R-040 CON021 | ||
| Alternate Part Number | PR6423/10R-040 CON021 | ||
| Condition: | 100% Original | ||
| Dimensions | 15x2.7x18.3cm | Weight | 0.28kg |
| Description | Eddy Current Signal Converter | Warranty: | 12 Months |
| | | | |
The EPRO PR6423/10R-040 CON021 is an 8mm Eddy Current Sensor designed for high-precision measurement in industrial applications. This sensor utilizes the eddy current principle to measure displacement, vibration, or proximity without physical contact.
Non-contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed.
Here is a table summarizing the performance and environmental specifications of the EPRO PR6423/10R-040 CON021 8mm Eddy Current Sensor
| Category | Specification |
| Performance | |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | ISO: 8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C (+32 to +113°F) |
| Deviation from Best Fit Straight Line (DSL) | ± 0.025 mm (± 1 mil) @ 0 to 45°C (+32 to +113°F) |
| Measuring Target | |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | 42CrMo4 (AISI/SAE 4140) Standard, Other (On Request) |
| Environmental, General | |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature Range | Sensor incl. 1m Cable: -35 to +200°C (-31 to 392°F) |
| Operating Temperature Range | Cable & Connector: -35 to +150°C (-31 to 302°F) |
| Material Sensor Tip | PEEK Polyether Ether Ketone |
| Material Case | Stainless Steel |
| Material Cable | PTFE Polytetrafluoroethylene |
| Material Connector | Brass, nickel-plated |
| Weight (Sensor with 1m Cable) | Approx. 100 grams (3.53 oz) |
