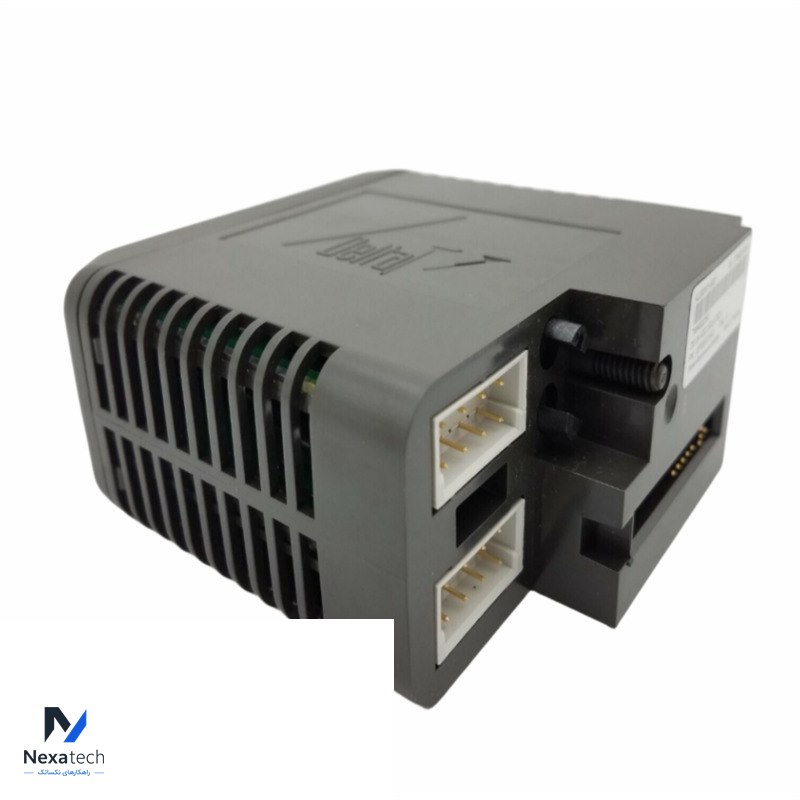

Name: EMERSON VE4050S2K1C0 KJ4001X1-BE1 12P0818X072 8 Wide I/O Carrier
Brand: Emerson
SKU: KJ3001X1-BG1 12P0557X162 VE4002S1T1B2
Availability: InStock

مشخصات فنی

Brand Name:	EMERSON
Model Number:	VE4050S2K1C0 KJ4001X1-BE1
Alternate Part Number	12P0818X072
Condition:	100% Original
Dimensions	4.4 cm x 10.2 cm x 10.8 cm	Weight	0.2kg
Description	8-Wide I/O Carrier	Warranty:	12 Months

The EMERSON VE4050S2K1C0 KJ4001X1-BE1 12P0818X072 is an 8-Wide I/O Carrier designed for use in Emerson automation systems. This carrier supports multiple I/O modules and provides a reliable and robust interface for field connections.

Power Specifications

Local Bus Power: 12.6 VDC at 8 A

Bussed Field Power: 30 VDC at 6.5 A

Environmental Specifications

Ambient Temperature: -40°C to +70°C

Shock: 10 g half-sine wave for 11 ms

Vibration: 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz

Airborne Contaminants: Meets ISA-S71.04-1985 Airborne Contaminants Class G3 standards

Relative Humidity: 5 to 95% non-condensing

Important Usage Guidelines

Aspect	Guideline
Bussed Field Power	Must not be connected to a supply with a potential exceeding 30 VDC.
Removal and Insertion	Field power, whether supplied at the terminal or as bussed field power through the I/O carrier, must be turned off before removing or connecting the device.
De-energizing Requirements	Power must be turned off before disconnecting any carriers or LocalBus Extender cables.
Unoccupied Locations	A module cover (KJ4001X1-FA1) must be installed on any permanently unoccupied location on an I/O module carrier (where no I/O module or terminal block is intended).
Safety Precautions	The device must not be unplugged unless the system is de-energized or the area is confirmed to be safe.
Cable Length Limitations	The combined length of I/O carriers and LocalBus Extenders must not exceed 6.5 meters. Interconnecting cables between enclosures should be placed in conduit.
