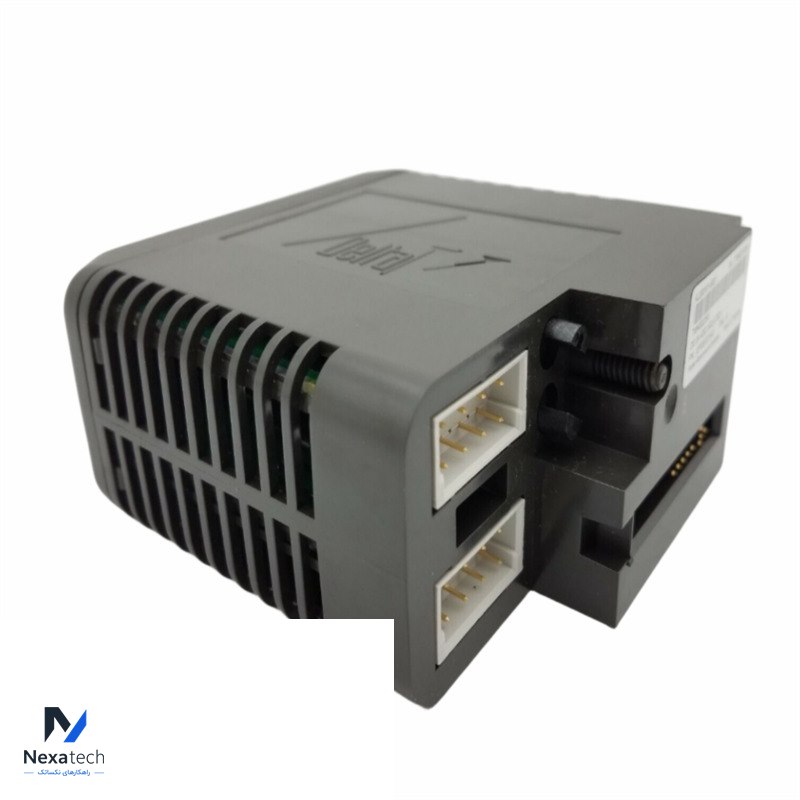

Name: EMERSON VE4003S5B1 KJ3002X1-BG2 12P1731X082 Thermocouple mV Card
Brand: Emerson
SKU: KJ3001X1-BG1 12P0557X162 VE4002S1T1B2
Availability: InStock

مشخصات فنی

Brand Name:	EMERSON
Model Number:	VE4003S5B1 KJ3002X1-BG2
Alternate Part Number	12P1731X082
Condition:	100% Original
Dimensions	8.1cm7.9cm8.8cm	Weight	0.2kg
Description	Thermocouple mV Card	Warranty:	12 Months

The Emerson VE4003S5B1 (part number KJ3002X1-BG2, 12P1731X082) is a Thermocouple and mV Input Card designed for use in process control systems. This card is intended to interface with thermocouple sensors and other devices that output millivolt (mV) signals, providing precise temperature measurements and low-voltage signal processing for industrial applications.

Power Specifications

Local Bus Power Rating:

12 VDC at 350 mA

Field Circuit Rating:

5.5 VDC at 0.6 mA per channel

Environmental Specifications

Specification	Details
Ambient Temperature	0 to 60°C
Shock Resistance	Withstands 10 g half-sine wave for 11 ms
Vibration Resistance	1 mm peak-to-peak displacement from 5 to 16 Hz
Vibration Resistance	0.5 g acceleration from 16 to 150 Hz
Airborne Contaminants	Complies with ISA-S71.04–1985 Airborne Contaminants Class G3
Relative Humidity	5% to 95% Non-Condensing
IP Rating	IP 20

Maintenance and Adjustment

Serviceability:

This unit contains no user-serviceable parts and should not be disassembled.

Calibration:

Calibration is not required.

Terminal Block Key Position

Specification	Details
Terminal Block Key Position	B2
Removal and Insertion Guidelines	- Ensure field power is disconnected before removing or connecting the device.
Removal and Insertion Guidelines	- The unit may be removed or inserted while system power is energized under certain conditions (only one unit at a time and with specific power supply requirements).
Removal and Insertion Guidelines	- Terminal block fuses cannot be removed with field power energized for non-sparking circuits.
Compatibility System	A rotary keying system ensures proper compatibility between I/O cards and terminal blocks after installation. The terminal block keys must be correctly set for the corresponding I/O card.
