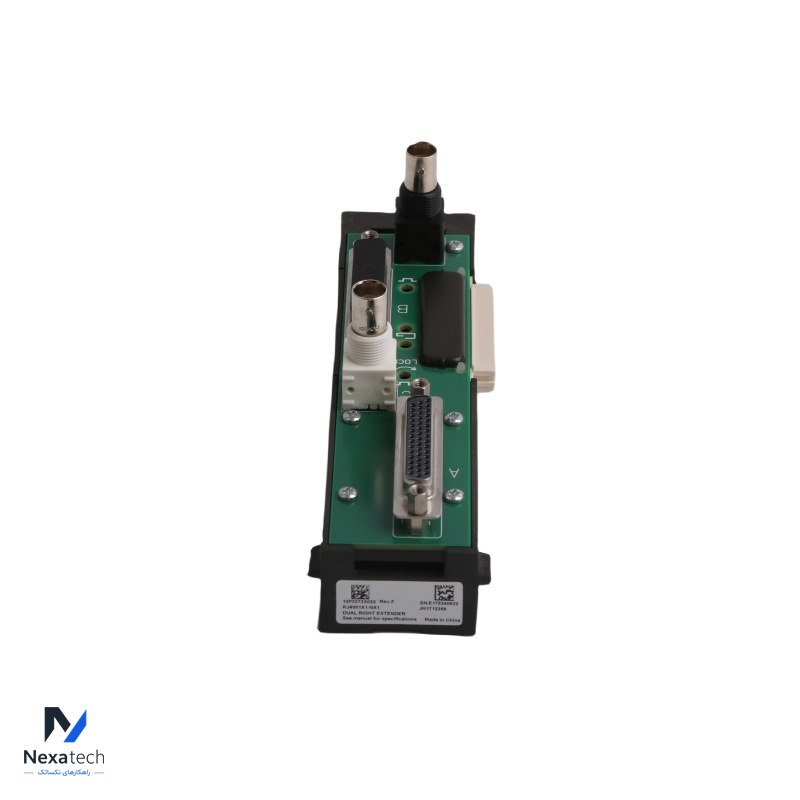

Name: EMERSON KJ4001X1-NA1 12P3373X022 1-Wide I/O Carrier Extender Right
Brand: Emerson
SKU: KJ4001X1-NA1 12P3373X022
Availability: InStock

مشخصات فنی

Brand Name:	EMERSON
Model Number:	KJ4001X1-NA1
Alternate Part Number	12P3373X022
Condition:	100% Original
Dimensions	16.7 cm x 4.7 cm x 6.5 cm	Weight	0.18kg
Description	1-Wide I/O Carrier Extender Right	Warranty:	12 Months

The Emerson KJ4001X1-NA1 (part number 12P3373X022) is a 1-Wide I/O Carrier Extender Right designed for expanding the capacity of I/O systems within the DeltaV distributed control system (DCS). This component is used to extend the functionality and connectivity of I/O carriers, enabling more flexible system configurations.

Power Specifications

Local Bus Power:

12 VDC at 8 A

Environmental Specifications

Specification	Details
Ambient Temperature	-40°C to +70°C
Shock Resistance	Withstands 10 g half-sine wave for 11 ms
Vibration Resistance	1 mm peak-to-peak displacement from 2 to 13.2 Hz
Vibration Resistance	0.7 g acceleration from 13.2 to 150 Hz
Airborne Contaminants	Complies with ISA-S71.04–1985 Airborne Contaminants Class G3
Relative Humidity	5% to 95% Non-Condensing

Maintenance and Adjustment

Serviceability:

This unit contains no user-serviceable parts and should not be disassembled.

Calibration:

Calibration is not required.

Removal and Insertion

Specification	Details
Power Requirements	The unit cannot be removed or inserted while system power is energized. Ensure power is de-energized before disconnecting any carriers or LocalBus Extender cables.
Length Limits	The combined length of I/O carriers and LocalBus Extenders must not exceed 6.5 meters.
Cable Installation	Interconnecting cables between enclosures must be installed in conduit.
