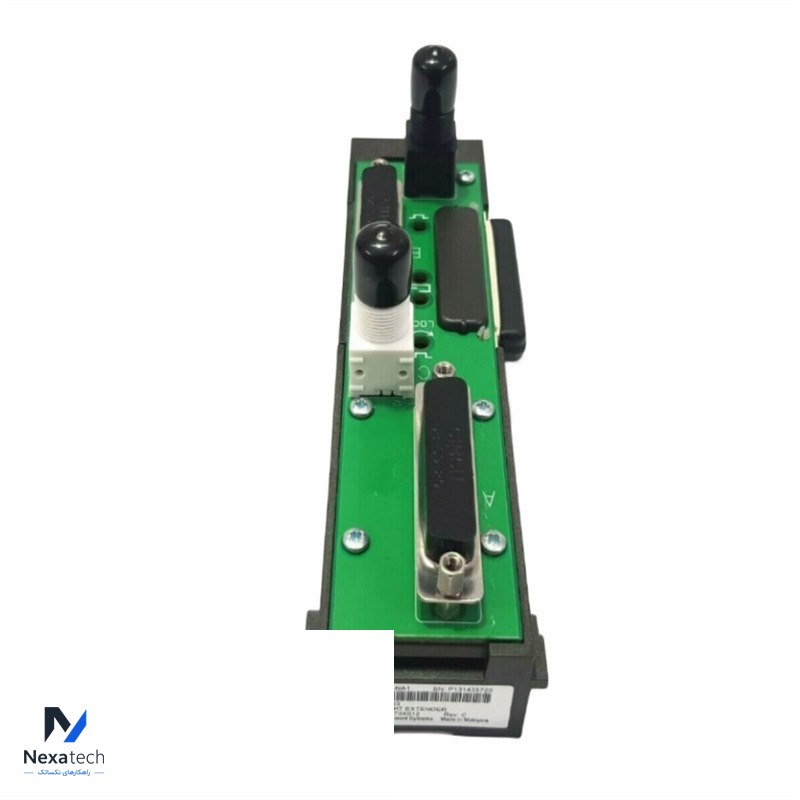

Emerson KJ4001X1-NA1 12P3373X012 Horizontal LocalBus Dual Right Cable Extender

The Emerson KJ4001X1-NA1 12P3373X012 Horizontal LocalBus Dual Right Cable Extender is a key component in Emerson’s DeltaV control system architecture. It extends the LocalBus communication interface for connecting additional I/O modules or controllers, typically used in horizontal installations.

Key Features:
LocalBus Communication: Extends the LocalBus interface, allowing communication between multiple DeltaV system components. This enables additional I/O cards or controllers to be connected while maintaining seamless communication.

Dual Right Configuration: Designed to extend the LocalBus communication to the right-hand side of the installation, typically used in horizontal setups where additional rows of hardware are required.

Horizontal Expansion: Facilitates the horizontal arrangement of DeltaV system hardware, allowing for easy and flexible expansion in complex installations.

Reliable Data Transfer: Ensures uninterrupted and reliable data transfer between DeltaV I/O modules and controllers, supporting both process control and safety functions.

Applications:
I/O Module Expansion: Used to connect multiple rows of I/O modules in large-scale DeltaV system installations.
Distributed Control Systems (DCS): Enhances the scalability of DeltaV systems in industries such as oil & gas, chemical processing, and power generation.
Technical Specifications:
Model: KJ4001X1-NA1
Part Number: 12P3373X012
Connector Type: The cable extender features connectors designed for LocalBus communication, ensuring secure and stable physical connections.
Orientation: Dual right configuration, allowing for expansion in a horizontal plane.

Benefits:
Scalability: Simplifies system expansion by enabling additional I/O modules to be added without altering the main system architecture.
Flexibility: Supports different configurations, ensuring that the system can be adapted to meet the specific needs of the installation.
Ease of Installation: Designed for quick and easy connection to the existing DeltaV hardware, minimizing setup time and ensuring operational efficiency.
