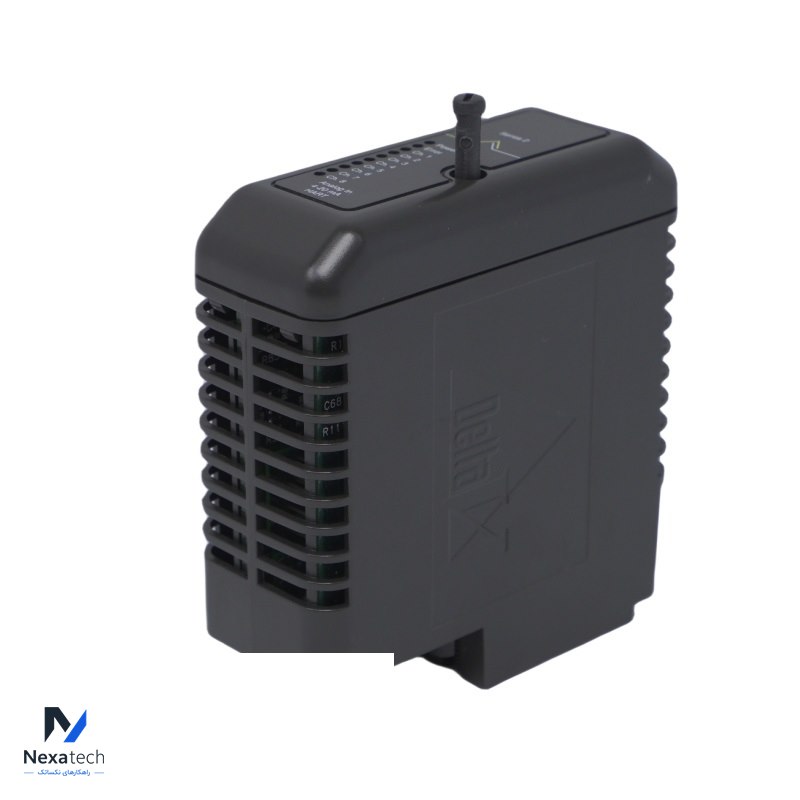

Name: EMERSON KJ3222X1-BA1 12P2532X072 VE4003S2B2 AI 8 CH 4-20mA HART CARD
Brand: Emerson
SKU: KJ3222X1-BA1 12P2532X072 VE4003S2B2
Availability: InStock

مشخصات فنی

Brand Name:	EMERSON
Model Number:	KJ3222X1-BA1
Alternate Part Number	12P2532X072 VE4003S2B2
Condition:	100% Original
Dimensions	8.1cm7.9cm8.8cm	Weight	0.2kg
Description	AI 8 CH 4-20mA HART CARD	Warranty:	12 Months

The Emerson KJ3222X1-BA1 (part number 12P2532X072), also known as the VE4003S2B2 AI 8 Channel 4-20mA HART Card, is an advanced input card used in process control systems. This card is designed to interface with analog devices and transmitters that operate within the 4-20 mA range while also supporting HART (Highway Addressable Remote Transducer) communication.

Power Specifications

1.Local Bus Power:

12 VDC at 150 mA

2.Bussed Field Power:

24 VDC at 300 mA

3.Field Circuit Power:

24 VDC at 30 mA per channel

Terminal Block Key Position

1.Position: A1

2.Removal and Insertion:

Ensure that field power, whether supplied through the field terminal or as bussed field power via the carrier, is disconnected before removing or connecting the device.

Perform an I/O loop assessment on all energy-limited nodes.

Do not remove or insert this unit while the system power is energized.

A rotary keying system is in place to ensure compatibility between I/O cards and terminal blocks once installation is complete. The terminal block keys must be correctly set for the corresponding I/O card.

Maintenance and Adjustment

Serviceability:

This unit contains no user-serviceable parts and should not be disassembled.

Calibration:

Calibration is not required.
