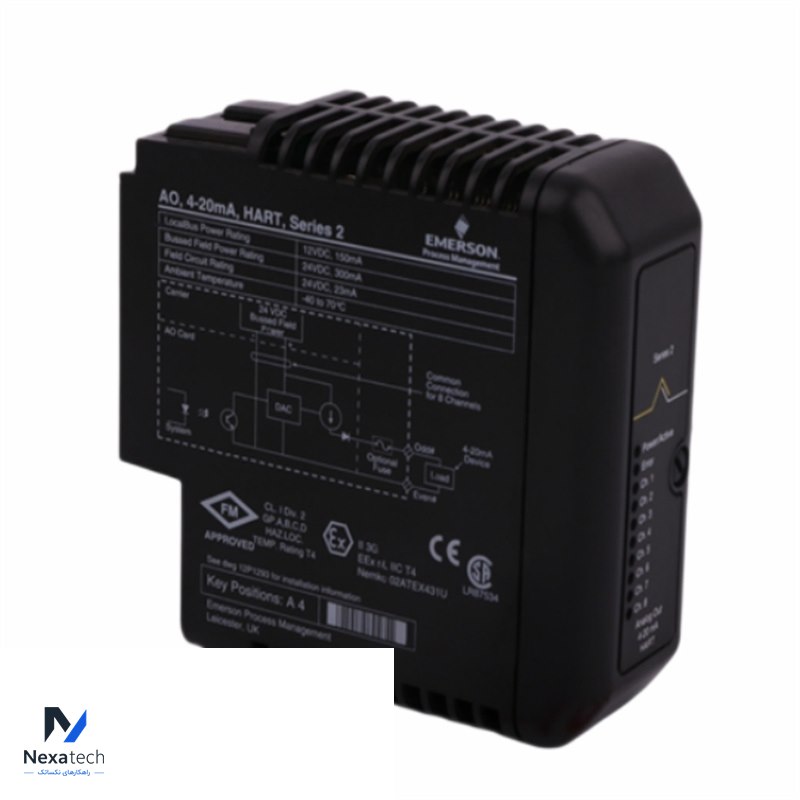

Emerson KJ3221X1-BA1 12P2531X112 VE4003S2B2 Analog Output Module

The Emerson KJ3221X1-BA1 12P2531X112 VE4003S2B2 Analog Output Module is a key component of Emerson’s DeltaV control system, specifically designed to provide reliable and accurate analog output signals for controlling field devices. This module integrates with the DeltaV distributed control system (DCS) and is used to output continuous analog signals to actuators, control valves, and other process control devices.

Key Features:
DeltaV System Integration:

Seamlessly integrates with Emerson’s DeltaV DCS, providing easy setup, configuration, and monitoring through the DeltaV control network.
Part of the DeltaV I/O subsystem, it is responsible for controlling analog devices in real time.

Analog Output Functionality:

Converts digital control signals from the DeltaV controller into analog output signals (typically 4-20 mA or 0-10V), which are used to control actuators, valves, and other process devices.
High accuracy and resolution ensure precise control over field equipment.
Multiple Channels:

Typically equipped with multiple output channels (exact number depending on the model), allowing the module to control several field devices simultaneously.
Safety and Redundancy:

Designed for use in critical applications where reliability and safety are paramount. It may support redundancy configurations, ensuring continuous operation in the event of a module failure.

Diagnostic Features:

Equipped with advanced diagnostics to monitor the health and status of each output channel, providing early detection of potential faults or issues, such as open loops or short circuits.
Isolation:

Offers electrical isolation between channels and between the field and system to prevent potential interference and improve signal integrity.

Applications:
Process Control: Used in industries such as oil and gas, chemical, pharmaceutical, and power generation for controlling processes that require continuous and accurate analog output.
Field Device Control: Controls devices like control valves, variable speed drives (VSDs), positioners, and more, ensuring smooth and precise operation in real-time.
Technical Specifications:
Model: KJ3221X1-BA1
Part Number: 12P2531X112
Module Name: VE4003S2B2 Analog Output Module
Channels: Typically includes 8 or more analog output channels, although the exact count can vary.
Output Type: 4-20 mA or 0-10 V DC, depending on the field device requirements.
Communication: Integrated with the DeltaV system through the LocalBus, ensuring fast and reliable data transmission.
Power Supply: Operates within the power specifications of the DeltaV system.
