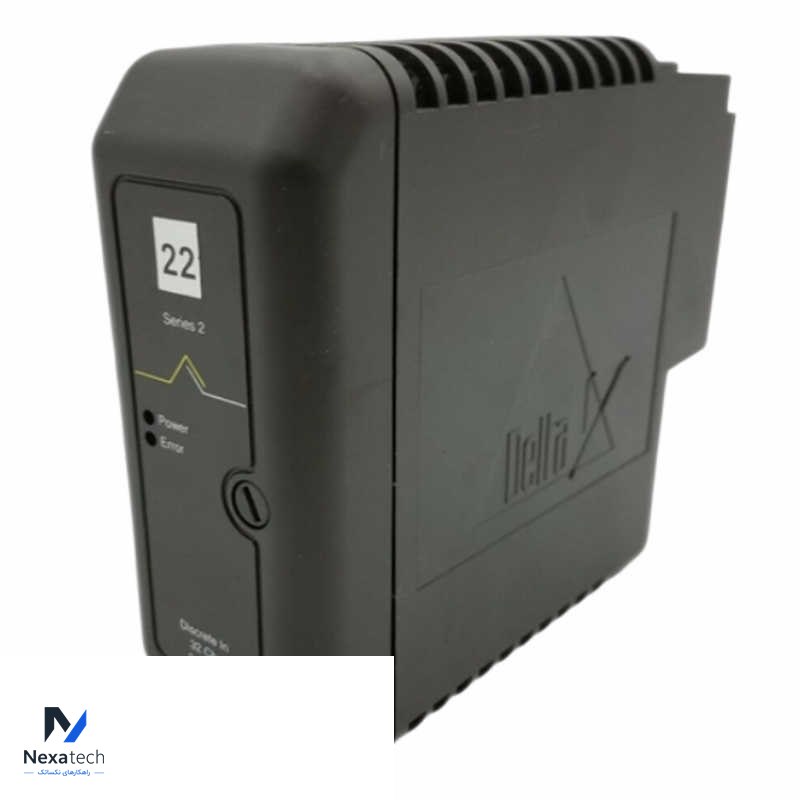

EMERSON KJ3203X1-BA1 12P3270X032 CE4001S2T2B4 DI 32-Channel 24 VDC Dry Contact Card

The Emerson KJ3203X1-BA1 12P3270X032 CE4001S2T2B4 DI 32-Channel 24 VDC Dry Contact Card is a digital input module designed for use within Emerson's DeltaV™ distributed control system (DCS). It provides 32 channels of 24 VDC dry contact inputs, enabling the monitoring of discrete signals such as switch closures, relay contacts, and other dry contact input signals in industrial process environments.

Key Features:
32-Channel Digital Input:

The module offers 32 independent digital input channels, each designed to accept 24 VDC dry contact signals.
This high-density configuration allows for efficient use of control cabinet space, making it ideal for large installations with many discrete signals to monitor.

24 VDC Dry Contact Inputs:

The card is specifically designed to interface with 24 VDC dry contact signals, which are commonly used in industrial environments for monitoring the status of switches, pushbuttons, and relays.
The module detects the open or closed state of dry contact devices without needing an external voltage supply at the signal source.
DeltaV™ System Integration:

Fully integrated into the Emerson DeltaV™ system, allowing for seamless communication with other components of the distributed control system.
Configuration and diagnostics are managed through the DeltaV control system, making setup and troubleshooting simple and efficient.

Input Isolation:

Each input channel is electrically isolated, preventing interference between channels and ensuring reliable operation even in electrically noisy industrial environments.
Hot-Swappable Capability:

The hot-swappable design allows the card to be replaced or removed without shutting down the entire system. This minimizes process disruptions during maintenance or replacement of the module.

Diagnostic Features:

The module includes advanced diagnostics to continuously monitor the health and status of each input channel, providing early warning of potential problems such as wiring issues or device failures.
Diagnostics are accessible through the DeltaV system, helping maintenance teams quickly identify and resolve issues.
LED Status Indicators:

Equipped with LED indicators on the front panel for each input channel, providing visual feedback on the operational status and state of each channel (open/closed).
These indicators help technicians quickly identify any issues with input signals during installation or troubleshooting.

Specifications:
Part Number: KJ3203X1-BA1
Product Code: 12P3270X032
Series: CE4001S2T2B4
Number of Channels: 32 digital input channels
Input Type: 24 VDC dry contact
Module Type: Digital Input Card
Isolation: Electrical isolation between channels
Communication: Fully integrated into the DeltaV distributed control system
Diagnostics: Built-in diagnostics for each input channel
Hot-Swappable: Yes
LED Indicators: Yes, for each input channel
