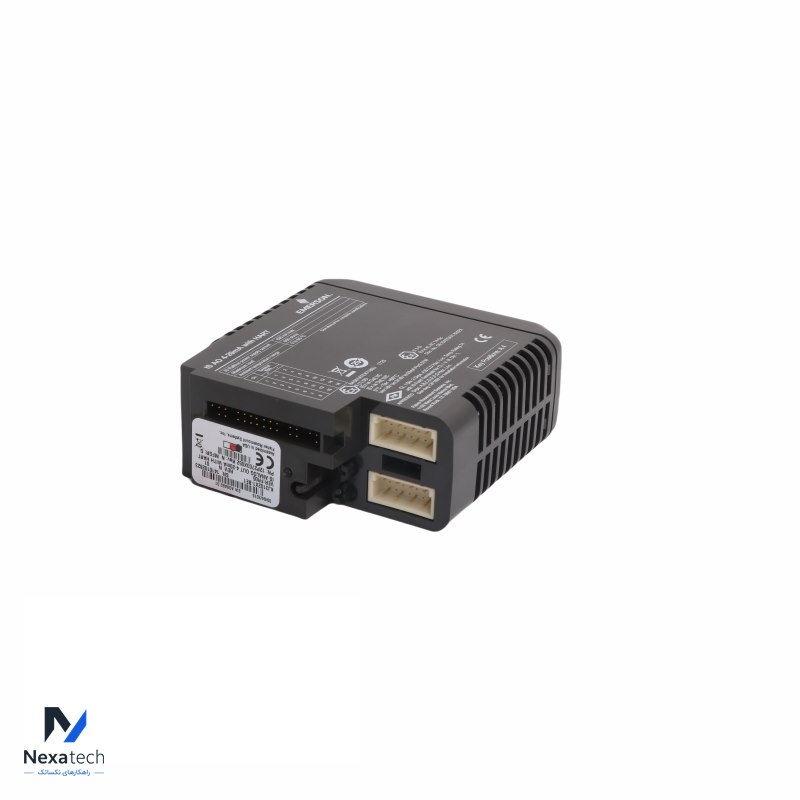

EMERSON KJ3102X1-BE1 12P2703X052 Analog Output Module

The Emerson KJ3102X1-BE1 (12P2703X052) Analog Output Module is part of the DeltaV Distributed Control System (DCS). This module provides analog output signals that are used to control various field devices such as actuators, control valves, and other equipment that require analog inputs for process control.

Key Features:
Type: Analog Output Module
Output Channels: Supports 8 analog output channels for controlling multiple field devices in real time.
Signal Type: The module outputs analog signals typically in:
4-20 mA (standard industrial control signal)
0-10V (or other standard voltage ranges), depending on system configuration.

Resolution: High-resolution output (usually 12 to 16 bits) ensures precise control of the connected field devices, allowing for fine adjustments in process control.
Diagnostics: Integrated advanced diagnostics enable real-time monitoring of output signal integrity. It can detect faults such as open circuits, short circuits, and deviations in output signal values, which helps in troubleshooting and maintenance.
LED Indicators: Equipped with visual indicators (LEDs) that display the status of each channel and overall module health, aiding in the quick identification of operational states and potential issues.
Isolation: The module offers both channel-to-channel and channel-to-ground isolation to protect the system from electrical faults and ensure safe operation.
Redundancy Support: Can be configured for redundancy, which is essential for critical applications that require high availability. In case of module failure, a redundant module can seamlessly take over.
Hot-Swappable: This feature allows the module to be replaced without shutting down the system, minimizing downtime and enabling continuous operation, which is critical for process industries.

Applications:
Process Control: Ideal for industries such as oil and gas, chemical processing, water treatment, and pharmaceuticals, where precise analog output signals are needed to control field devices like control valves, dampers, and actuators.
Industrial Automation: Used in automation processes where real-time control over field devices is critical for ensuring efficient operations and safety.
Feedback Control Systems: The module can be used to regulate process variables such as pressure, temperature, and flow by sending precise output signals to control devices.
Environmental Specifications:
Operating Temperature: Suitable for use in industrial environments, with the ability to operate in a wide range of temperatures.
Mounting: Can be easily mounted into DeltaV system racks, designed for quick installation and integration with existing systems.
