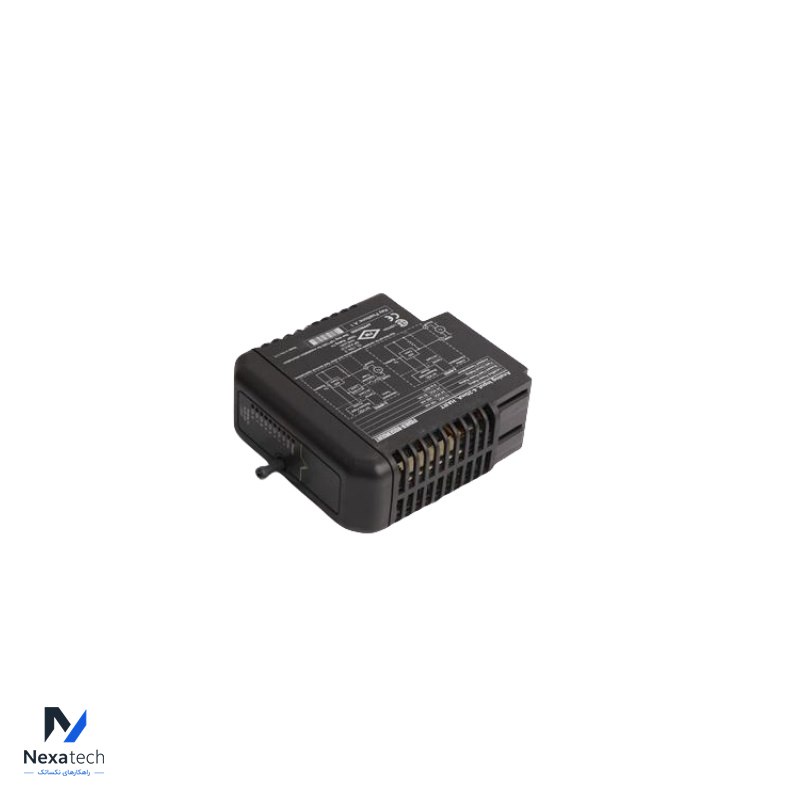

EMERSON KJ3002X1-BG2 12P1731X022 VE4003S5B1 Thermocouple mV card

The Emerson KJ3002X1-BG2 12P1731X022 VE4003S5B1 Thermocouple mV Card is a specialized module designed for precise temperature measurement using thermocouple sensors and microvolt (mV) signals. This card integrates seamlessly with Emerson’s DeltaV™ control system, providing reliable temperature monitoring for various industrial applications.

Key Features:
Thermocouple and mV Input:

Supports multiple types of thermocouples (e.g., J, K, T, E, N, R, S, B) for versatile temperature measurement across a wide range of processes.
Capable of handling mV signals, allowing for compatibility with various measurement devices and enhancing the system's flexibility.
Cold Junction Compensation:

Integration with DeltaV™ System:

Fully compatible with Emerson’s DeltaV™ distributed control system, enabling easy configuration and management through DeltaV software.
Facilitates seamless communication and data transfer between thermocouples and the control system.
High Accuracy and Stability:

Designed for high accuracy in temperature measurement, providing reliable data essential for process control.
Features signal filtering and noise reduction to enhance measurement stability.
Modular Design:

The modular architecture allows for straightforward installation and maintenance, enabling quick upgrades and replacements without significant downtime.
Supports various configurations tailored to specific application requirements.

Equipped with built-in cold junction compensation, ensuring accurate temperature readings by correcting for temperature variations at the thermocouple connection point.

LED Status Indicators:

Equipped with LED indicators for real-time monitoring of input status, facilitating quick diagnostics and troubleshooting.
Provides immediate feedback on operational conditions.
User-Friendly Configuration:

Simplifies the setup process, allowing users to easily configure thermocouple inputs and associated parameters.
Offers options for alarms and thresholds, enhancing monitoring capabilities.

Specifications:
Part Number: KJ3002X1-BG2
Product Code: 12P1731X022
Function: Thermocouple mV Card for temperature measurement
Compatibility: Designed for use with Emerson’s DeltaV™ control system
Input Types: Supports multiple thermocouple types and mV input signals
Applications:
Process Temperature Control: Ideal for monitoring and controlling temperatures in industries such as oil & gas, chemical processing, and food and beverage.
Automation Systems: Integrates thermocouple inputs into automation systems, enhancing overall process efficiency and safety.
Data Acquisition: Facilitates accurate temperature data collection for process analysis and optimization.
