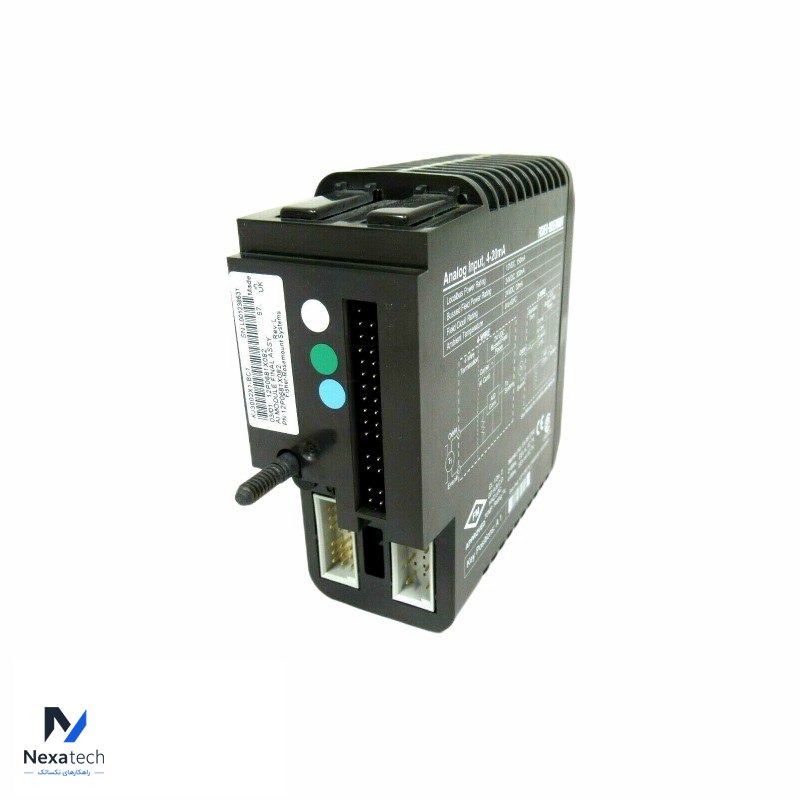

Emerson KJ3002X1-BC1 12P0681X082 VE4003S1B2 Analog Input Module

The Emerson KJ3002X1-BC1 12P0681X082 VE4003S1B2 Analog Input Module is a key component in the DeltaV distributed control system (DCS) designed to handle analog input signals from various field devices. This module plays a critical role in ensuring accurate data acquisition and process control across diverse industrial applications.

Key Features:
Compatibility with DeltaV Systems:

Specifically designed for integration within Emerson’s DeltaV control architecture, providing reliable communication and data processing.
Multi-Channel Inputs:

Typically accommodates 8 analog input channels, enabling simultaneous connections from multiple field instruments such as temperature sensors, pressure transducers, and flow meters.

Flexible Signal Types:

Supports a range of analog input signals, including:
Current Inputs: 4-20 mA
Voltage Inputs: 0-10 V
This versatility allows it to interface with various analog devices, ensuring broad application capability.
High Accuracy and Resolution:

Designed to deliver precise measurements, which is crucial for effective process monitoring and control.
Comprehensive Diagnostics:

Built-in diagnostic features continuously monitor the health of each input channel, detecting issues like:
Open circuits
Short circuits
Signal out-of-range conditions
Diagnostic data can be accessed through the DeltaV system, facilitating timely maintenance and troubleshooting.

Electrical Isolation:

Provides electrical isolation between input channels and the field devices to reduce the risk of noise interference and enhance safety.
Redundancy Options:

Can be configured in redundant systems for high availability and reliability in critical applications, ensuring continuous operation even in the event of a component failure.

Applications:
Industrial Automation: Ideal for use in sectors like oil and gas, chemical processing, power generation, and water treatment, where continuous monitoring of process variables is essential.
Data Acquisition: Collects and processes data from various analog field instruments, providing real-time insights for operational control.
Technical Specifications:
Model: KJ3002X1-BC1
Part Number: 12P0681X082
Module Name: VE4003S1B2 Analog Input Module
Input Channels: Typically supports 8 channels.
Supported Input Types:
Current: 4-20 mA
Voltage: 0-10 V
Communication Interface: Integrated with DeltaV’s LocalBus for efficient data handling.
