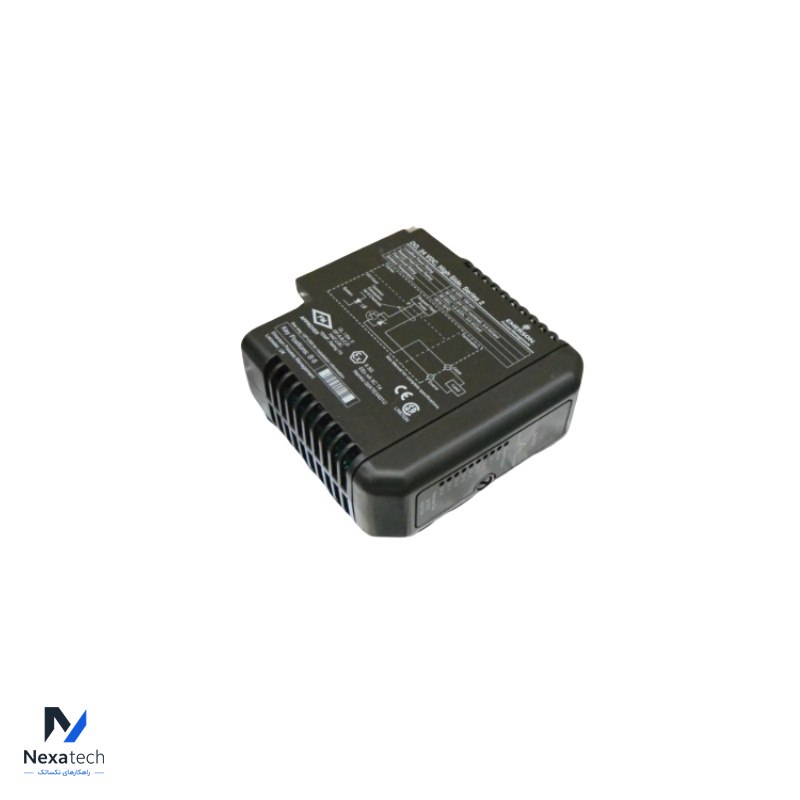

EMERSON KJ3002X1-BA1 12P0680X132 VE4003S2B2 Analog Input Module

The Emerson KJ3002X1-BA1 (12P0680X132) VE4003S2B2 Analog Input Module is part of Emerson's DeltaV distributed control system (DCS), designed for processing analog signals from field devices such as sensors and transmitters. It provides accurate and reliable input readings, which are critical for real-time monitoring and control in industrial applications.

Key Features:
Type: Analog Input Module
Input Channels: Provides 8 analog input channels, which can be used to connect various field devices, including transmitters, sensors, and other instruments that output analog signals.
Signal Types: Supports a variety of signal types, such as:
4-20 mA (current loop)
0-10V (voltage)
Other standard industrial analog signal formats.
Resolution: High-resolution input (typically 12-16 bits) ensures precise signal measurement for critical process control applications.

Signal Conditioning: The module includes built-in signal conditioning to ensure accurate conversion of analog signals to digital data for processing by the DeltaV system.
Diagnostics: Equipped with advanced diagnostics for real-time monitoring of signal integrity and detection of issues such as open circuits, short circuits, and input signal deviations.
LED Indicators: Features LED indicators for each channel and overall module status, allowing quick identification of operational states and troubleshooting.
Hot-Swappable: The module can be replaced during system operation without shutting down the process, supporting continuous operations.
Isolation: Provides channel-to-channel and channel-to-ground isolation to protect the system from electrical faults and ensure reliable operation.
Calibration: Supports automatic or manual calibration to maintain accuracy over time.

Applications:
Process Control: Widely used in industries such as oil and gas, chemical processing, pharmaceuticals, and power generation to monitor pressure, temperature, flow, and other process variables.
Instrumentation: Suitable for applications requiring precise monitoring and control of analog signals from various industrial instruments and sensors.
Automation Systems: Used in automation tasks where real-time data acquisition from field devices is critical for controlling and optimizing processes.
Environmental Specifications:
Operating Temperature: Designed to operate in industrial environments with a wide temperature range.
Mounting: Fits into DeltaV system racks and cabinets, designed for easy installation and maintenance.
