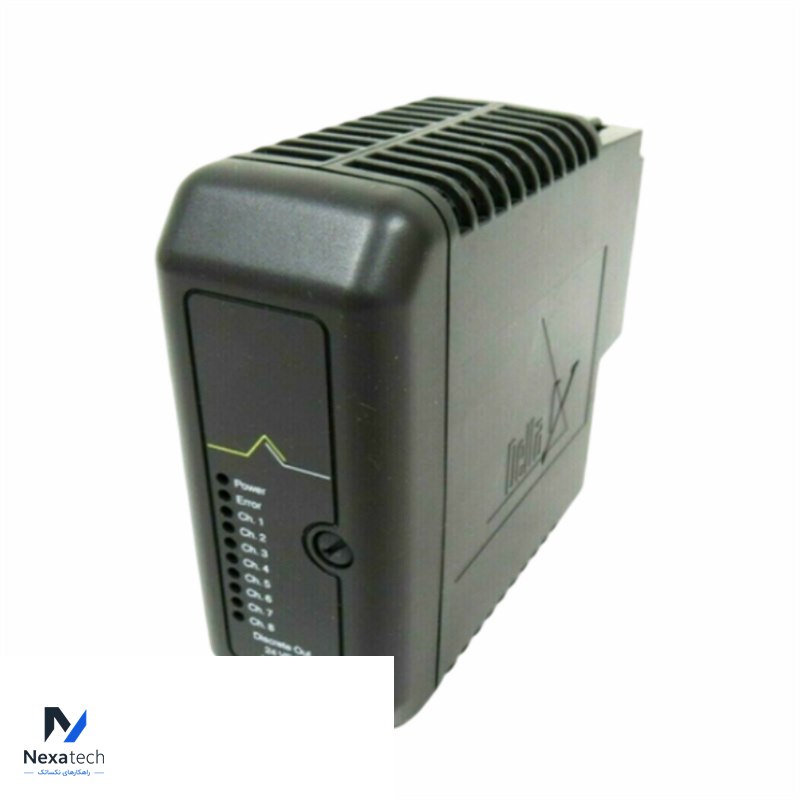

EMERSON KJ3001X1-BH1 12P0558X152 Discrete Output Module

The Emerson KJ3001X1-BH1 (12P0558X152) Discrete Output Module is part of the DeltaV control system, specifically designed to provide reliable digital output signals to various field devices in industrial automation applications. This module is crucial for controlling actuators, valves, and other discrete devices within a control system.

Key Features:
Type: Discrete Output Module
Output Channels: Typically supports 16 discrete output channels, allowing for control of multiple devices simultaneously.
Signal Type: Provides digital output signals, usually in the form of:
24V DC for control signals to devices such as solenoids, relays, and contactors.
Output Configuration: Can be configured for various output types, including:
Source or sink configurations depending on the application requirements.
LED Indicators: Each output channel is usually equipped with LED indicators to display the status of the outputs (on/off) for easy monitoring and troubleshooting.

Isolation: Provides channel-to-channel and channel-to-ground isolation to enhance system protection and reduce electrical noise interference.
Diagnostics: Integrated diagnostics for monitoring the health and status of each output channel, which aids in troubleshooting and maintenance.
Applications:
Process Control: Ideal for industries such as oil and gas, chemical processing, and manufacturing where precise control of field devices is necessary.
Automation Systems: Commonly used in automated systems for controlling various mechanical devices, providing the necessary digital signals for operation.

Environmental Specifications:
Operating Temperature: Designed to operate effectively in various industrial environments, typically within a specified temperature range.
Mounting Options: Fits into standard DeltaV racks or cabinets, designed for easy integration into existing control architectures.
Benefits:
Reliable Control: Provides robust and dependable digital output signals, ensuring accurate control of connected devices.
Enhanced Monitoring: LED indicators and diagnostic capabilities allow for real-time monitoring of output status, facilitating quick identification of issues.
Ease of Integration: Designed for compatibility with Emerson's DeltaV systems, making it simple to implement into existing setups without extensive modifications.
