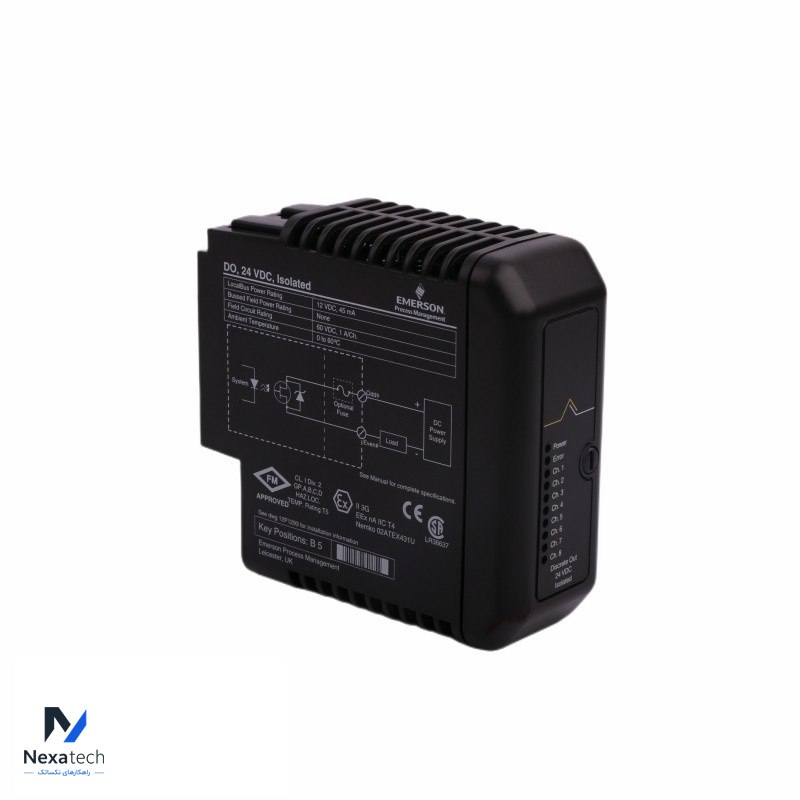

Name: EMERSON KJ3001X1-BG1 12P0557X162 VE4002S1T1B2 8-Channel 24 VDC Isolated Card
Brand: Emerson
SKU: KJ3001X1-BG1 12P0557X162 VE4002S1T1B2
Availability: InStock

مشخصات فنی

Brand Name:	EMERSON
Model Number:	KJ3001X1-BG1
Alternate Part Number	12P0557X162 VE4002S1T1B2
Condition:	100% Original
Dimensions	4.1x12.5x10.5cm	Weight	0.2kg
Description	8-Channel 24 VDC Isolated Card	Warranty:	12 Months

The EMERSON KJ3001X1-BG1 12P0557X162 VE4002S1T1B2 is an 8-channel isolated input card designed for use in Emerson’s DeltaV system. This card is used to interface with field devices and provide isolated signal inputs.

Maintenance and Adjustment

Serviceability: The unit has no user-serviceable parts and should not be disassembled.

Calibration: No calibration is required.

Power Specifications

Local Bus Power Rating: 12 VDC at 150 mA

Field Circuit Rating: 60 VDC at 1 A per channel

Environmental Specifications

Ambient Temperature: 0 to 60 °C

Shock: 10 g half-sine wave for 11 ms

Vibration: 1 mm peak-to-peak from 5 to 16 Hz; 0.5 g from 16 to 150 Hz

Airborne Contaminants: Complies with ISA-S71.04-1985 Airborne Contaminants Class G3

Relative Humidity: 5 to 95% non-condensing

IP Rating: IP 20

Terminal Block Key Position: B5

Removal and Insertion

Aspect	Details
Field Power	Must be disconnected at the terminal or through the carrier before removing or connecting the device.
System Power	The unit can be removed or inserted with system power energized under the following conditions:
System Power	- Only one unit at a time may be removed or inserted while system power is energized.
System Power	- With KJ1501X1-BC1 System Dual DC/DC Power Supply operating on 24 VDC or 12 VDC input power, primary circuit wiring inductance must be less than 23 碌H, or use a certified supply with an open circuit voltage (Ui) of 12.6 VDC and inductance (Lo) of less than 23 碌H (including wire inductance).
System Power	- Non-sparking field circuits must be de-energized before removal or insertion.
System Power	- Terminal block fuse cannot be removed with field power energized for non-sparking circuits.
Keying System	A rotary keying system ensures compatibility between I/O cards and terminal blocks. The terminal block must have the keys set for the I/O card.
