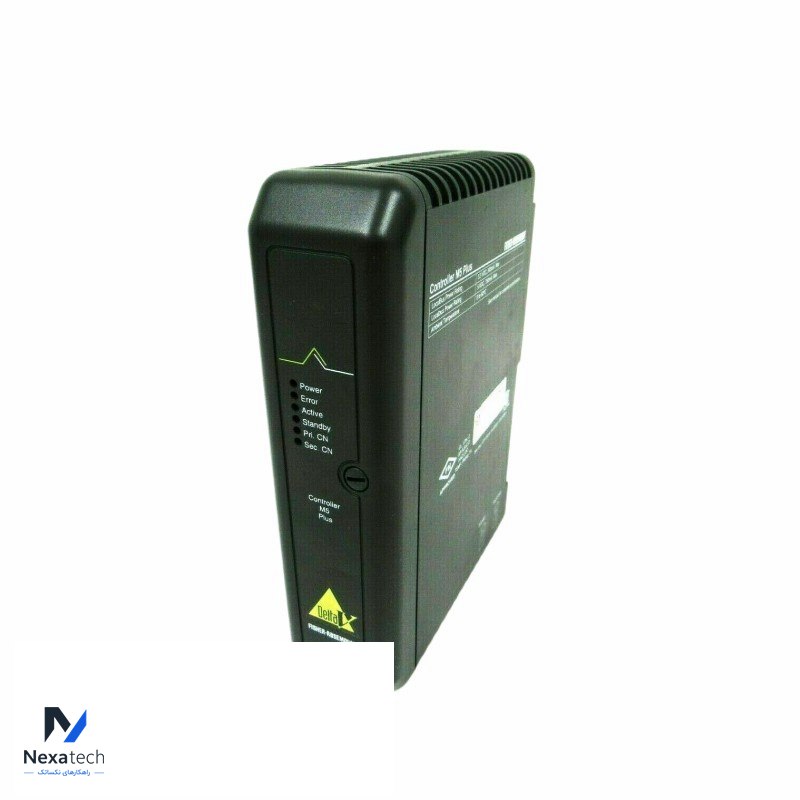

Emerson KJ2002X1-CA1 12P1509X102 VE3004 Controller M5 Plus

The Emerson KJ2002X1-CA1 12P1509X102 VE3004 Controller M5 Plus is a digital input module used in Emerson's DeltaV control system. This module is designed to facilitate the integration and management of digital signals from various field devices, ensuring reliable performance in industrial automation applications.

Key Features:
Integration with DeltaV Systems:

Specifically designed for seamless integration within the DeltaV DCS architecture, ensuring compatibility and easy configuration with other DeltaV components.
Multi-Channel Input Capability:

Typically supports multiple digital input channels (usually 8 channels), allowing for simultaneous connections from various devices such as switches, relays, and other digital sensors.

Flexible Digital Input Types:

Accepts various types of digital signals, including:
Dry contacts: Devices that provide an open or closed signal.
Wet contacts: Devices that provide a signal with voltage applied.
This versatility enhances the module's application across different industrial environments.
High Reliability and Durability:

Constructed with robust components to withstand harsh operating conditions, ensuring long-term reliability and minimal downtime.
Advanced Diagnostics:

Equipped with diagnostic capabilities to monitor input status and health, including:
Signal loss detection.
Channel failure alerts.
Diagnostic information is accessible via the DeltaV system, facilitating quick troubleshooting and maintenance.

Electrical Isolation:

Provides isolation between input channels and the control system, reducing the risk of noise interference and enhancing safety.

Applications:
Process Automation: Ideal for use in industries such as oil and gas, chemical processing, water treatment, and manufacturing, where monitoring of digital signals is critical.
Data Acquisition and Monitoring: Collects data from digital devices to facilitate real-time monitoring and control.
Technical Specifications:
Model: KJ2002X1-CA1
Part Number: 12P1509X102
Module Name: VE3004 Digital Input Module
Input Channels: Typically supports 8 channels.
Input Types:
Dry contacts
Wet contacts
Communication: Integrated with DeltaV’s LocalBus for efficient data transfer and communication.
