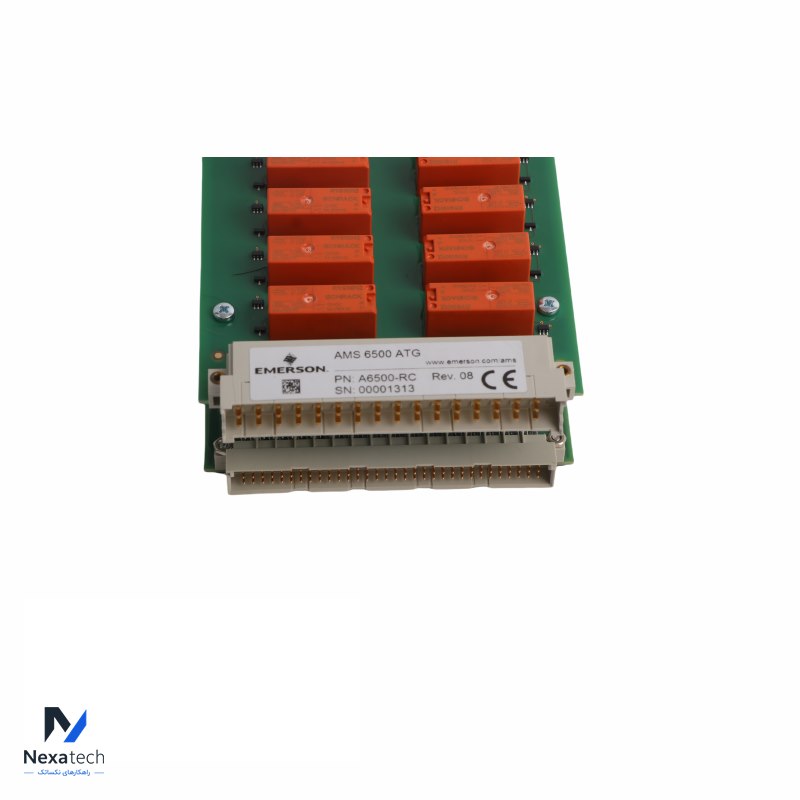

EMERSON A6500-RC System Relay Card

The Emerson A6500-RC System Relay Card is a critical component of the AMS 6500 ATG machinery protection system, designed to enhance the safety and reliability of industrial machinery. Specifically, this card acts as a 16-channel output relay module, capable of driving various alarms and control actions based on the health and status of rotating machinery, such as steam turbines, gas turbines, compressors, and hydro turbines. It integrates seamlessly with API 670 standards for machinery protection.

Key Features:
16-Channel Output Relays:

The A6500-RC has 16 output relay channels, each of which can be programmed to respond to specific machine conditions such as clear, alert, or alarm signals.
The relay outputs can be connected to other control systems or actuate alarms and shutoff mechanisms, making it crucial for ensuring the safety of critical rotating machinery.

High Reliability:

Designed for high-reliability applications in critical plant machinery, where failure could lead to significant downtime or damage.
Particularly suited for steam turbines, gas turbines, compressors, and hydro turbines, where continuous and dependable machinery protection is essential.
Configurable Logic:

Each relay output can be configured using Boolean logic, which allows for complex decision-making based on multiple inputs.
The system supports the application of time delays and other logic operators, which means it can be tailored to the specific safety and alarm needs of the plant.
Easy-to-use software provides a graphical interface that guides users through the configuration process with a pictorial logic display, making it intuitive and straightforward to set up.

ntegration with AMS 6500 and API 670:

Works in conjunction with the AMS 6500 ATG to provide comprehensive machinery health monitoring and protection.
Fully compliant with API 670 standards for rotating machinery protection, ensuring it meets industry requirements for safety and reliability.
Can be configured to select any input channel clear, alert, or alarm signals as the trigger for each relay.
Advanced Machinery Health Monitoring:

The AMS 6500 machinery health monitor, of which the A6500-RC is part, integrates into Emerson’s PlantWeb® and AMS software ecosystem.
PlantWeb provides an operations-integrated platform that combines machinery health data with the Ovation® and DeltaV™ process control systems, offering a unified view of process and machinery health.

Communication and System Integration:
The A6500-RC relay module communicates seamlessly with the broader AMS 6500 system through PlantWeb® and AMS software, allowing for integration into the overall plant control and monitoring systems.
This enables operations and maintenance teams to view machinery health data alongside process control information, improving decision-making and response times in case of machinery faults.
Summary of Benefits:
Provides fail-safe machinery protection with configurable relay outputs for alarm and shutdown scenarios.
Integrates easily with existing plant control systems such as Ovation® and DeltaV™, as well as with AMS software for predictive maintenance.
Graphical logic configuration makes setup and adjustments simple and user-friendly.
Ensures compliance with API 670 standards, critical for maintaining the safety and performance of high-value rotating machinery.
