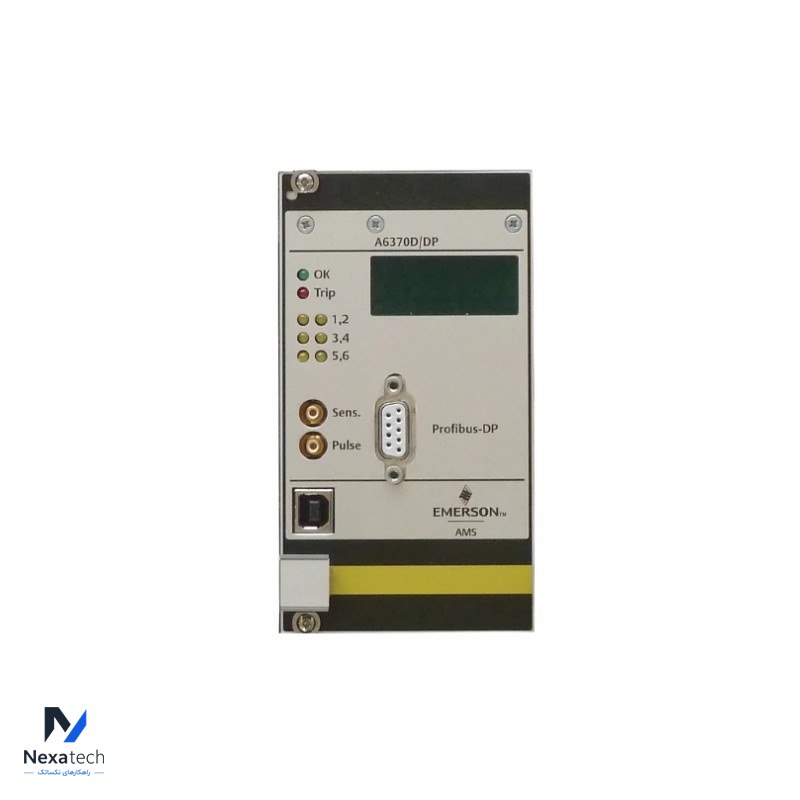

Name: EMERSON A6370D Overspeed Protection Monitor
Brand: Emerson
SKU: A6370D
Availability: InStock

مشخصات فنی

Brand Name:	EMERSON
Model Number:	A6370D
Alternate Part Number	A6370D
Condition:	100% Original
Dimensions	24cm17cm6.5cm	Weight	0.32kg
Description	Overspeed Protection Monitor	Warranty:	12 Months

The A6370 Monitor is part of the AMS 6300 SIS Overspeed protection system and is mounted in a 19” rack (84HP width and 3RU height) in combination with the A6371 system backplane. One AMS 6300 SIS consists of three Protection monitors (A6370) and one backplane (A6371).

The system is designed for use with Eddy-Current sensors, Hall- Element sensors and Magnetic (VR) Sensors.

Parameter	Specification
Sensor Voltage Supply
Nominal Supply Voltage	-24.5 V ± 1.5V DC
Short-circuit Proof	Yes
Galvanic Isolation	Yes
Maximum Current	35 mA
Signal Input, Eddy Current & Hall Element Sensors
Input Signal Voltage Range	0 V to 26 V (+/-), protected against reverse polarity
Limit Range	± 48 V
Frequency Range	0 to 20 kHz
Input Resistance	Typical 100 kΩ
Signal Input, Magnetic (VR) Sensors
Input Signal Voltage Range	Minimum 1 Vpp, maximum 30 V RMS
Frequency Range	0 to 20 kHz
Input Resistance	Typical 18 kΩ
Digital Input (Backplane)
Number of Inputs	4 (Galvanically separated with common ground for all digital inputs)
Functions	Test Value 1, Test Value 2, Enable Test Values, Reset Latch
Logic Low Level	0 V to 5 V
Logic High Level	13 V to 31 V, open
Input Resistance	Typical 6.8 kΩ
Current Output (Backplane)
Number of Outputs	2 (Electrically isolated with common ground)
Output Range	0/4 to 20 mA or 20 to 4/0 mA
Accuracy	±1% of full scale
Maximum Load	<500 Ω
Maximum Output Current	20 mA
