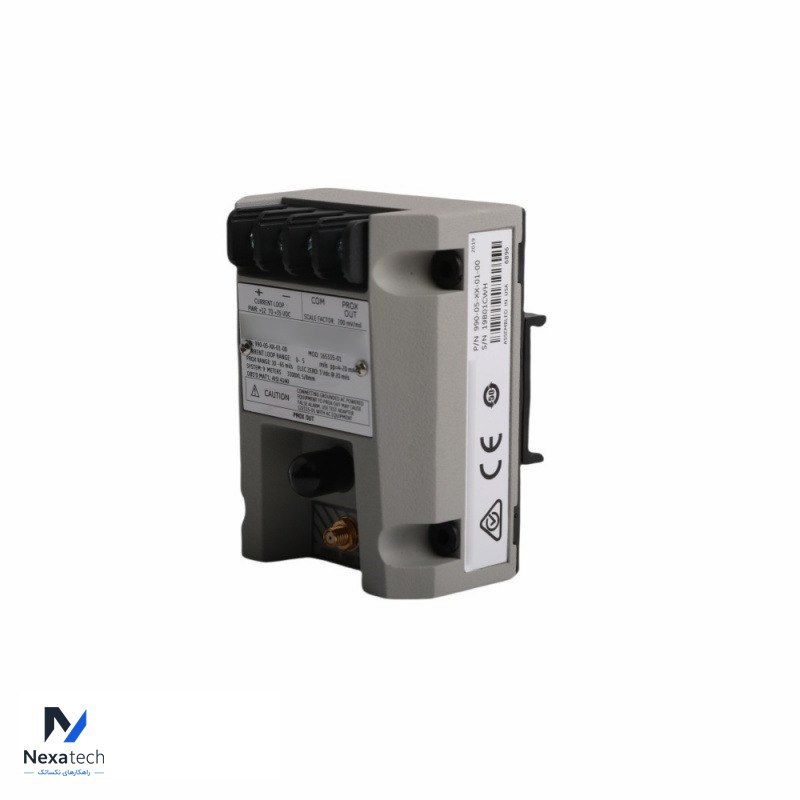

Bently Nevada 990-10-XX-01-00 163930-01 Vibration Transmitter

Specification

Brand Name

Bently Nevada

Power Requires:+12 to +35 Vdc input at the transmitter terminal
Maximum loop resistance:1,000 Ω including cable at 35 Vdc.
Current limiting:23 mA typical.
Output impedance:Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load.
Frequency response:5 Hz to 6,000 Hz +0, 3 dB.
Minimum target size:9.5 mm (0.375 in) diameter.
Operating temperature:-35°C to +85°C(-31°F to +185°F)
Storage temperature:-52°C to +100°C(-62°F to +212°F)

Model Number

990-10-XX-01-00

Alternate Part Number

163930-01

Condition

100% Original

Dimensions

10x7.3x6cm

Description

Vibration Transmitter

Weight

0.46kg

Warranty

12 Months
