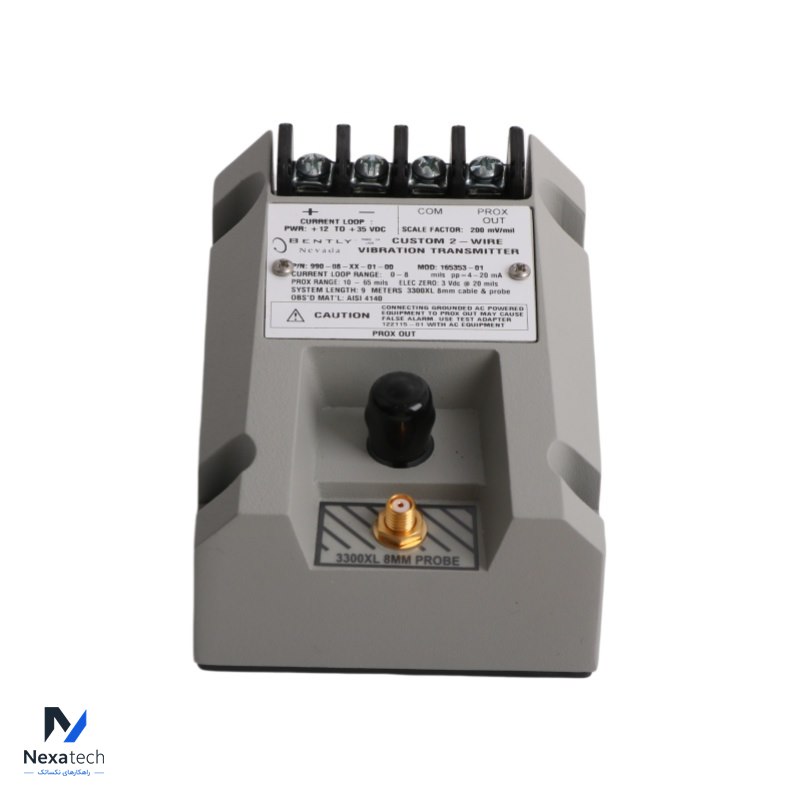

Bently Nevada 990-08-50-01-05 Vibration Transmitter

Specification

Brand Name

Bently Nevada

Full-scale Option:0-8 mils pp (0-200 μm pp)
System Length Option:5.0 meters (16.4 feet)
 Mounting Option:35 mm DIN rail clips
Agency Approval Option:CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approval
Frequency response:5 Hz to 6,000 Hz +0, 3 dB.
Operating temperature:-35°C to +85°C (-31°F to +185°F)
Storage temperature:-52°C to +100°C (-62°F to +212°F)
Maximum loop resistance :1,000 Ω including cable at 35 Vdc.
Current limiting:23 mA typical

Model Number

990-08-50-01-05

Alternate Part Number

990-08-50-01-05

Condition

100% Original

Dimensions

7.3x5.1x10cm

Description

Vibration Transmitter

Weight

0.44kg

Warranty

12 Months
