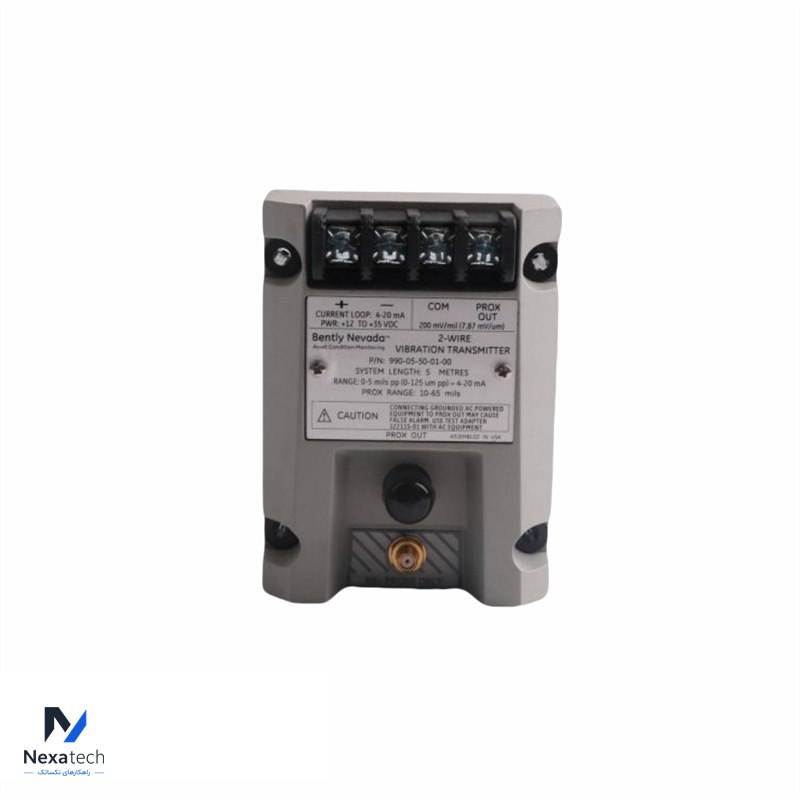

Bently Nevada 990-06-70-01-05 Vibration Transmitter

Name: Bently Nevada 990-06-70-01-05 Vibration Transmitter
Brand: Bently Nevada
SKU: 990-06-70-01-05
Availability: InStock

پارت‌نامبر: 990-06-70-01-05

توضیحات محصول

Vibration Transmitter

Specification
Brand Name	Bently Nevada	Power Requires:+12 to +35 Vdc input at the transmitter terminal. Maximum loop resistance:1,000 Ω including cable at 35 Vdc. Current limiting:23 mA typical. Output impedance:Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load. Frequency response:5 Hz to 6,000 Hz +0, 3 dB. Minimum target size:9.5 mm (0.375 in) diameter. Operating temperature:-35°C to +85°C(-31°F to +185°F) Storage temperature:-52°C to +100°C(-62°F to +212°F)



Model Number	990-06-70-01-05
Alternate Part Number	990-06-70-01-05
Condition	100% Original
Dimensions	7.3x6x10cm
Description	Vibration Transmitter
Weight	0.52kg
Warranty	12 Months
