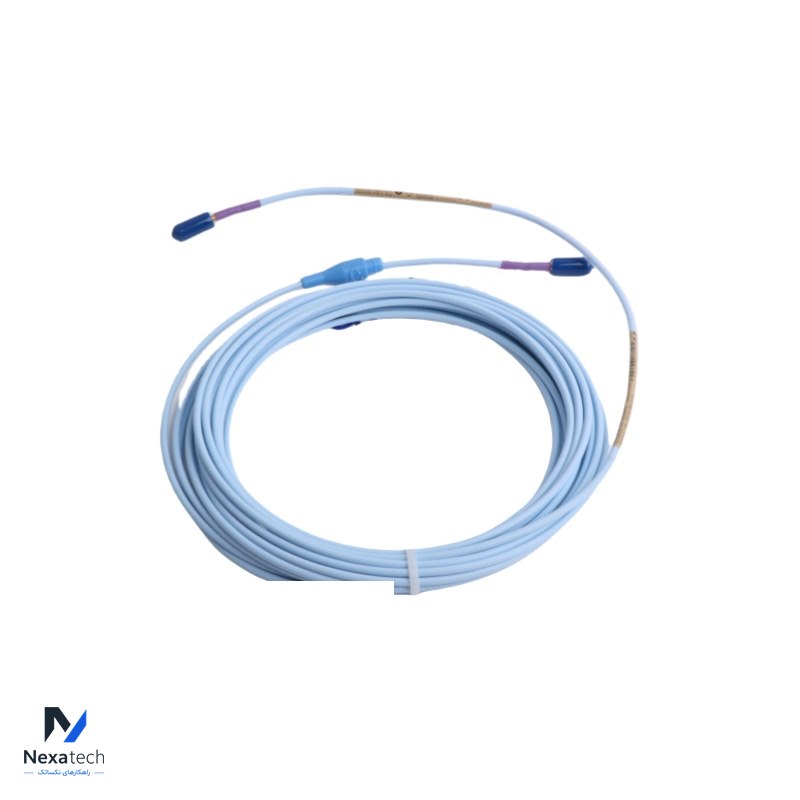

Bently Nevada 89410-01 Low Frequency Velocity Sensor

Specification

Brand Name

Bently Nevada

Sensitivity: 20 mV/mm/s (508 mV/in/s) ±10%
Velocity Range: 102 mm/s (4 in/s) peak
Amplitude Linearity: ±3%—102 mm/s (4 in/s) peak
Output Bias Voltage: -12 ±1 VDC
Operating and Storage Temperature Range: -40°C to +100°C (-40°F to +212°F)
Shock Survivability: 981 m/s² (100g) peak
Relative Humidity: To 100% non-submerged; case is hermetically sealed

Model Number

89410-01

Alternate Part Number

89410-01

Condition

100% Original

Dimensions

9.5x3.2x3.2cm

Description

Low Frequency Velocity Sensor

Weight

0.34 kg

Warranty

12 Months
