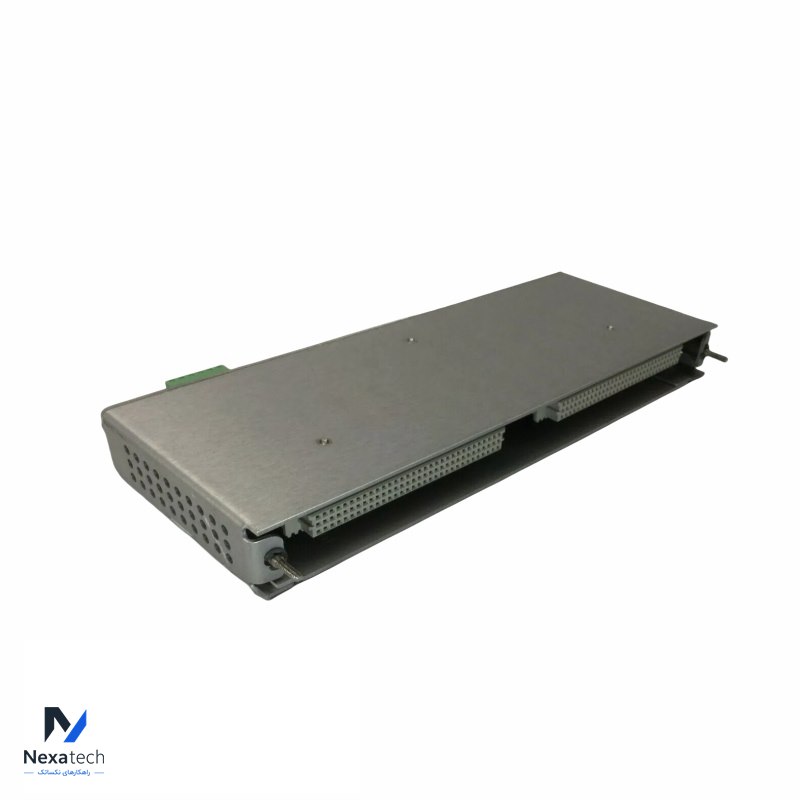

Bently nevada 3500/93 135799-01 Display Interface Module

The 3500/93 System Display is designed to meet the requirements of American Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including:
-System Event List
-Alarm Event Lists
- All Channel, Monitor, Relay Module, Keyphasor Module or Tachometer Module data

The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in any of four ways:
1. Face Mounting – display installs directly over the front panel of any full size 3500 rack using a special hinged support. This permits access to the rack’s buffered output connectors and userinterface buttons and switches without disconnecting or disabling the display.
2.19-Inch EIA Rack Mounting: The display is mounted on 19-inch EIA rails and can be positioned up to 100 feet away from the 3500 System. When using an external power supply, the distance can be extended up to 4000 feet.
3.Panel Mounting: The display is installed in a panel cutout, either within the same cabinet or up to 100 feet away from the 3500 System. With an external power supply, this distance can be increased to 4000 feet.
4.Independent Mounting: The display is flush-mounted against a wall or panel and can be located up to 100 feet from the 3500 System. This distance extends up to 4000 feet when an external power supply is used.
