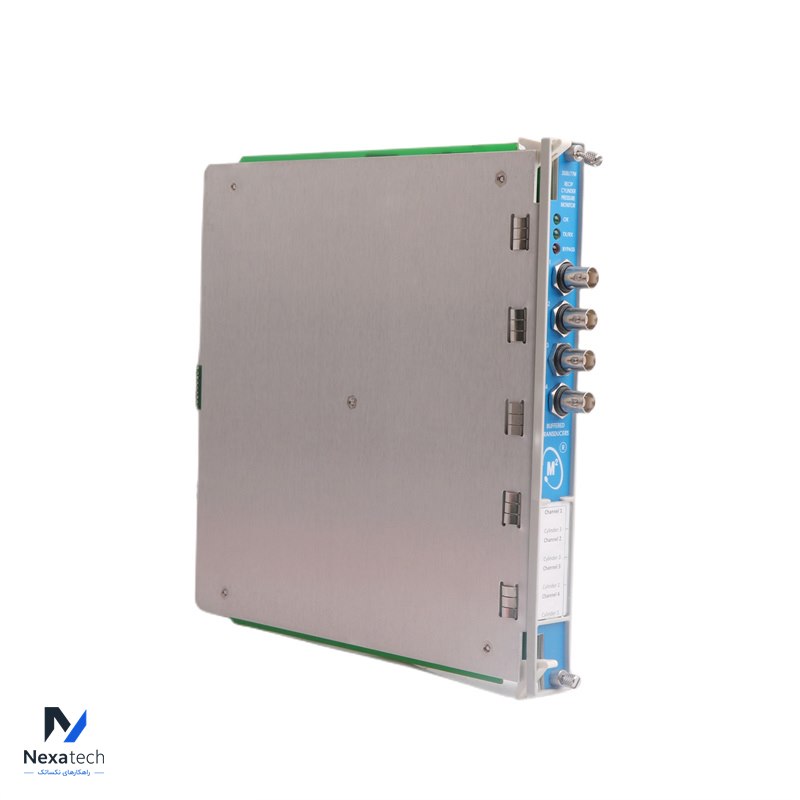

Bently Nevada 3500/77M 140734-07 Recip Cylinder Pressure Monitor

The 3500/77M Recip Cylinder Pressure Monitor is a 4-channelmonitor that accepts input from Bently Nevada approvedpressure transducers, conditions the signal to make variouspressure measurements for reciprocating compressors, andcompares the conditioned signals with user-programmablealarms.

The Bently Nevada 3500/77M Recip Cylinder Pressure Monitor is a sophisticated device designed for monitoring and analyzing the pressure within reciprocating compressors. Here are the detailed specifications and features for this model:

Bently Nevada 3500/77M Recip Cylinder Pressure Monitor
Model Number: 3500/77M
Part Number: 140734-07
Type: 4-Channel Recip Cylinder Pressure Monitor
Channels: Four independent channels for pressure measurement.
Input: Accepts signals from Bently Nevada-approved pressure transducers.
Signal Conditioning: The monitor conditions the input signals to prepare them for accurate pressure measurement.
Measurement Capabilities:
Pressure Measurement: Capable of measuring pressure in reciprocating compressors.
Alarms: Compares the conditioned signals against user-programmable alarm thresholds.

Programmable Alarms: Users can configure alarms based on specific pressure thresholds, allowing for real-time monitoring and alerts.
Applications: Ideal for monitoring reciprocating compressors, where accurate pressure measurement is crucial for operational efficiency and safety.
Integration: Designed to integrate seamlessly with other Bently Nevada monitoring equipment, allowing for a comprehensive monitoring system.
Maintenance and Calibration: Regular maintenance and calibration are recommended to ensure accurate performance. Consult Bently Nevada for specific calibration procedures and intervals.

Key Features:
Versatility: Supports multiple pressure transducers and can monitor different cylinders or measurement points simultaneously.
Reliability: Built to withstand harsh industrial environments and provide reliable measurements.
Data Analysis: Enables detailed analysis of pressure trends and conditions, aiding in predictive maintenance and troubleshooting.
