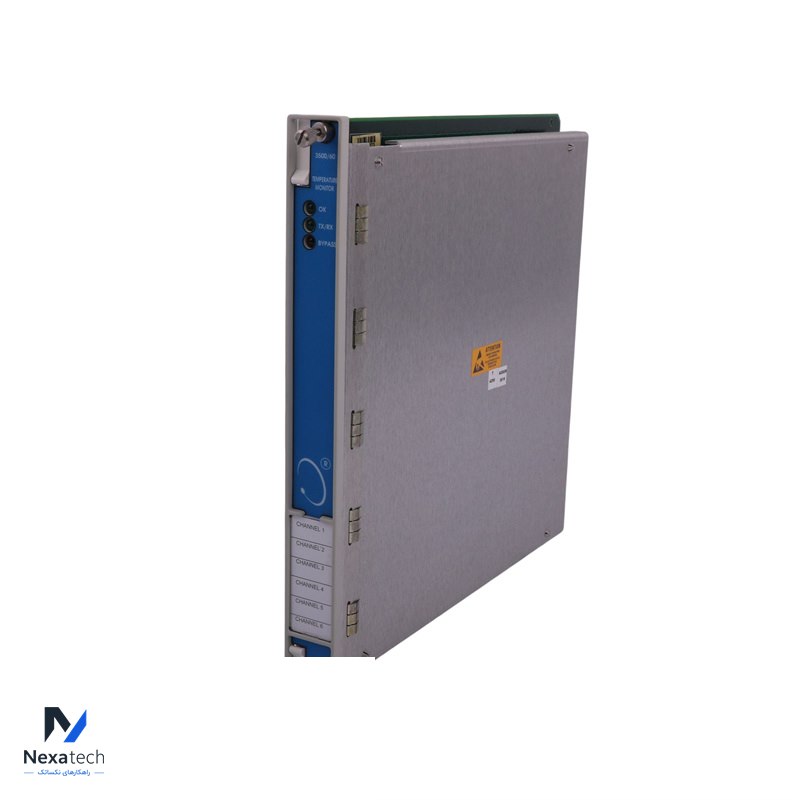

Bently Nevada 3500/60 163179-01 Temperature Module

The 3500/60 & 61 modules provide six channels oftemperature monitoring and accept both ResistanceTemperature Detector (RTD) and Thermocouple (TC)temperature inputs.  The modules condition these inputs andcompare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionalityexcept that the 3500/61 provides recorder outputs for each ofits six channels while the 3500/60 does not.

Key Features:
Six-Channel Monitoring: The 3500/60 Temperature Module supports six independent channels for temperature monitoring, making it suitable for applications requiring multi-point temperature measurements.
Input Compatibility: The module accepts temperature inputs from both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), offering flexibility in sensor selection based on the specific application requirements.
Input Conditioning: The module conditions the RTD and TC inputs, ensuring accurate and stable temperature readings. This is crucial for maintaining the integrity of the temperature data used in machinery protection.
User-Programmable Alarm Setpoints: Users can program alarm setpoints for each channel, allowing the system to trigger alarms when temperature readings exceed predefined thresholds. This feature is vital for early detection of potential issues, enabling proactive maintenance and preventing equipment failures.

Specifications:
Part Number: 163179-01
Channels: 6 independent channels
Input Types: RTD (Resistance Temperature Detector) and TC (Thermocouple)
Alarm Setpoints: User-programmable for each channel
Recorder Outputs: Not available on the 3500/60 (available on the 3500/61)
System Compatibility: Compatible with the Bently Nevada 3500 Series Machinery Protection System
