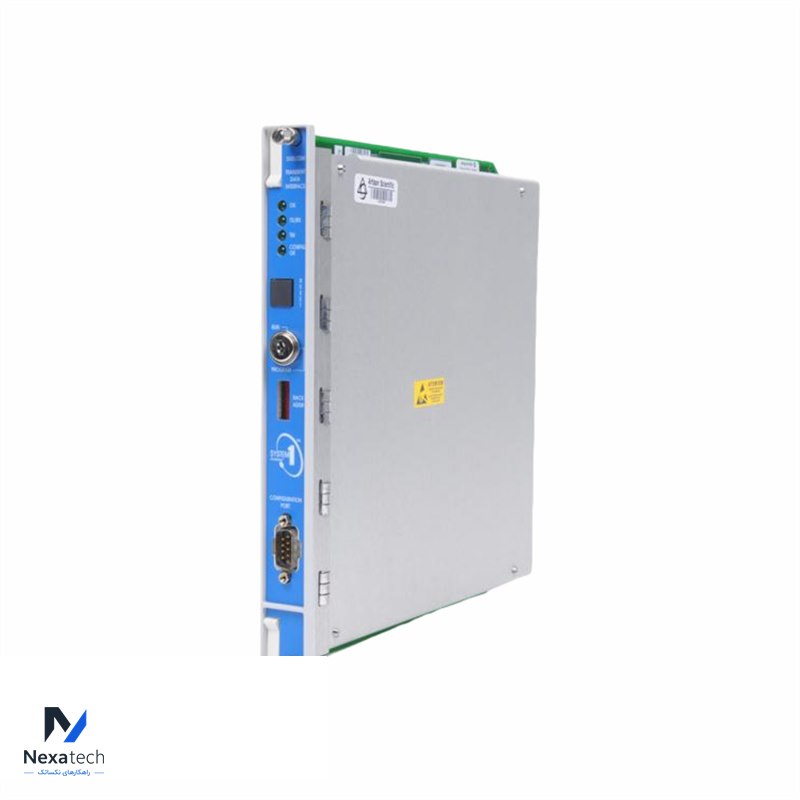

Bently nevada 3500/22M 288055-01 Transient Data Interface

Description：

Manufacturer : Bently Nevada
Product No. : 288055-01
Product type : Transient Data Interface

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.

The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M,3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software.

Static data capture capability is standard with the TDI.However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.

(FAQs) about the Bently Nevada 3500/22M 288055-01 Transient Data Interface:
1. What is the Bently Nevada 3500/22M 288055-01?
The Bently Nevada 3500/22M 288055-01 is a Transient Data Interface module designed for the 3500 Series machinery protection and monitoring system, allowing for the capture and analysis of transient data.

2. What types of data does the 3500/22M capture?
The 3500/22M captures transient data related to machine performance, including vibrations and other dynamic conditions that occur during operation.

3. How does the 3500/22M improve machinery monitoring?
By providing high-fidelity transient data, the 3500/22M enhances the ability to diagnose issues, enabling early detection of potential faults and optimizing maintenance strategies.
