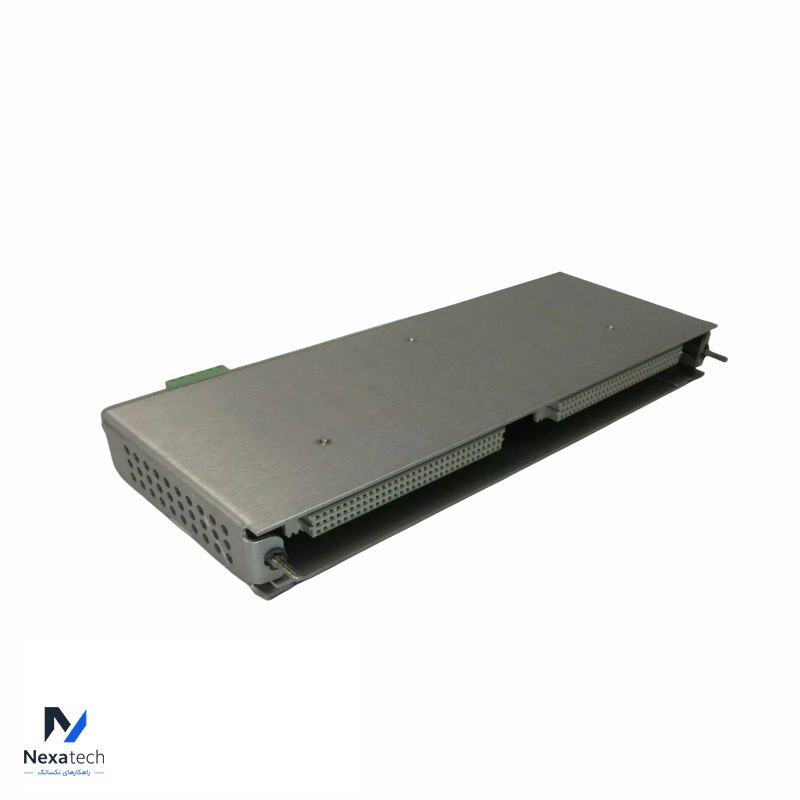

Bently Nevada 3500/15 129486-01 AC/DC Power Supply Module

The Bently Nevada 3500/15 129486-01 AC/DC Power Supply Module is a key component of the Bently Nevada 3500 Series Machinery Monitoring System. Here are the main details about this module:

Overview:
Model Number: 129486-01
Type: AC/DC Power Supply Module
Series: 3500/15

Features:
Voltage Inputs:
AC Input: 85 to 264 VAC, 47 to 63 Hz
DC Input: 88 to 140 VDC or 20 to 30 VDC
Outputs:
Provides power to all modules in the 3500 rack.
The module can operate on dual redundant power supplies for increased reliability.
Redundancy:
Supports redundancy by allowing the installation of two power supplies in a single rack. If one fails, the other automatically takes over without interrupting the system.
Status Indicators:
LEDs on the front panel indicate the health of the power supply.

The 3500/15 Power Supply Module is used to convert AC or DC input power into the required DC voltages for all modules in the 3500 Series rack. It ensures a reliable power source for machinery monitoring systems.
