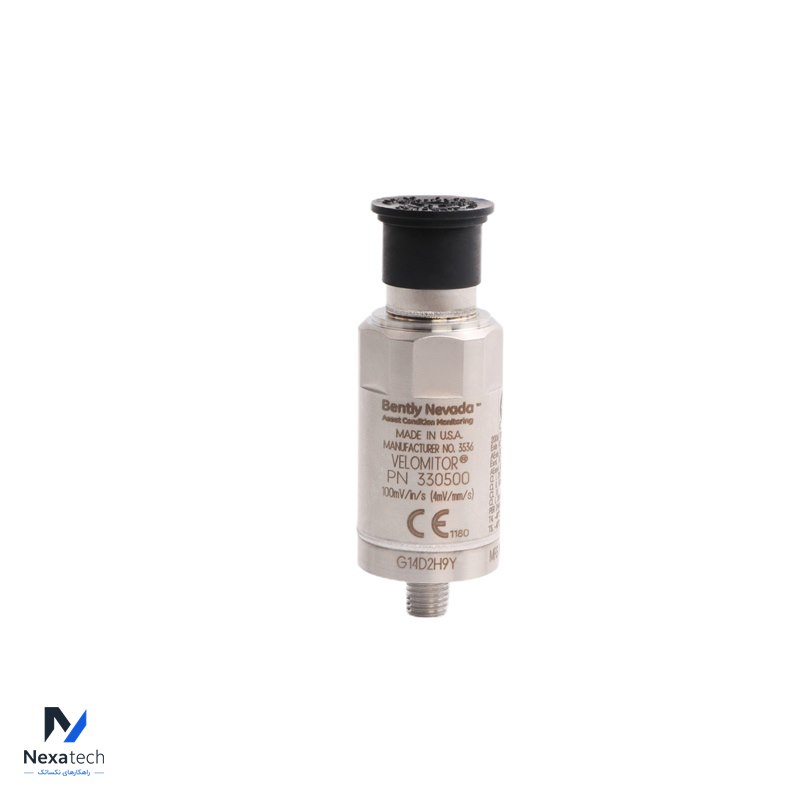

Bently Nevada 330500-00-20 Velomitor Piezo-velocity Sensor

Specification

Brand Name

Bently Nevada

Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
Temperature Sensitivity: -14% to +7.5% typical
Velocity Range: 1270 mm/s (50 in/s) peak
Transverse Sensitivity: Less than 5% of sensitivity
Amplitude Linearity: ±2% to 152 mm/s (6 in/s) peak
Mounted Resonant Frequency: Greater than 12 kHz
Output Bias Voltage: -12 ±3.0 VDC
Dynamic Output Impedance: Less than 2400 Ω
Operating Temperature Range: -55°C to 121°C (-67°F to 250°F)
Shock Survivability: 5,000 g peak, maximum
Relative Humidity: To 100% non-submerged

Model Number

330500-00-20

Alternate Part Number

330500-00-20

Condition

100% Original

Dimensions

6.7x2.4x2.4cm

Description

Velomitor Piezo-velocity Sensor

Weight

0.14kg

Warranty

12 Months
