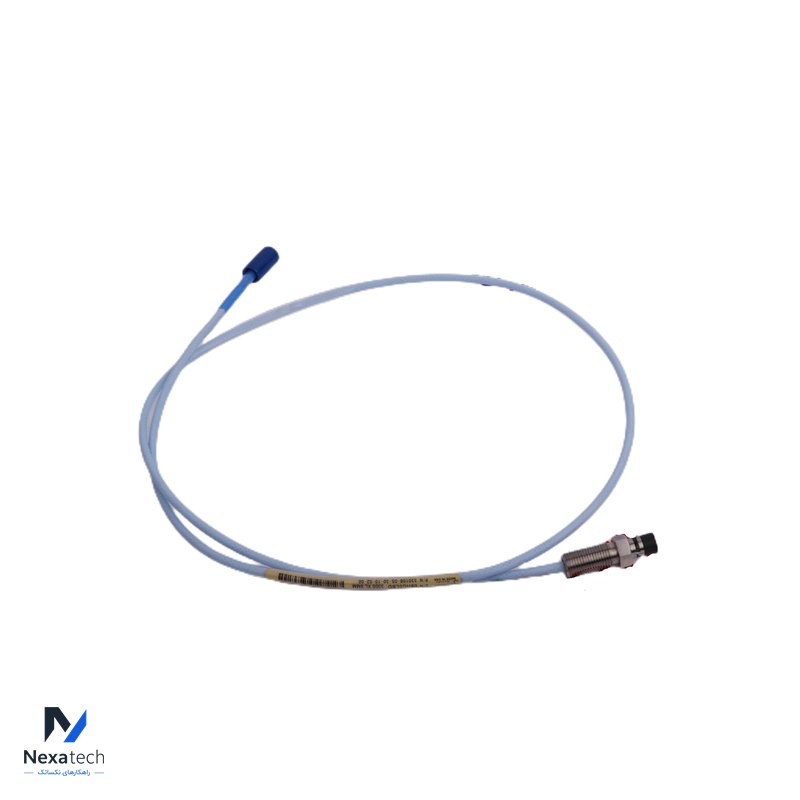

Bently Nevada 330106-05-30-10-02-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330106-05-30-10-02-00 is part of the 3300 XL 8mm Proximity Probe series, designed for precision measurement of proximity (distance) and vibration in rotating machinery. This model is used in critical applications to monitor machinery health and detect issues like imbalance or misalignment.

Key Features:
Sensing Range:
The probe is designed to provide a nominal linear sensing range of 80 mils (2 mm), typical for 8mm proximity probes.

Diameter:
It has a standard 8mm diameter, which is commonly used in many industrial proximity monitoring applications.

Cable Length:
The total cable length for this model is 30 feet (9.14 meters), with a 5-foot probe cable and a 25-foot extension cable.

Probe Length:
The probe has a length of 5 feet (1.52 meters), making it suitable for various installation depths and conditions.

Ordering Information Breakdown:
330106: Probe model number from the 3300 XL series.
05: 5 feet (1.52 meters) probe cable length.
30: Total length of 30 feet (9.14 meters) including extension cable.
10: 10 feet (3.05 meters) extension cable length.
02: 2mm linear range.
00: Standard probe tip configuration.
Compatibility:
The 330106 probe is designed to work with Bently Nevada’s 3300 XL Proximitor Sensors. It forms part of a complete system that provides accurate and reliable measurements of shaft position and vibration.
