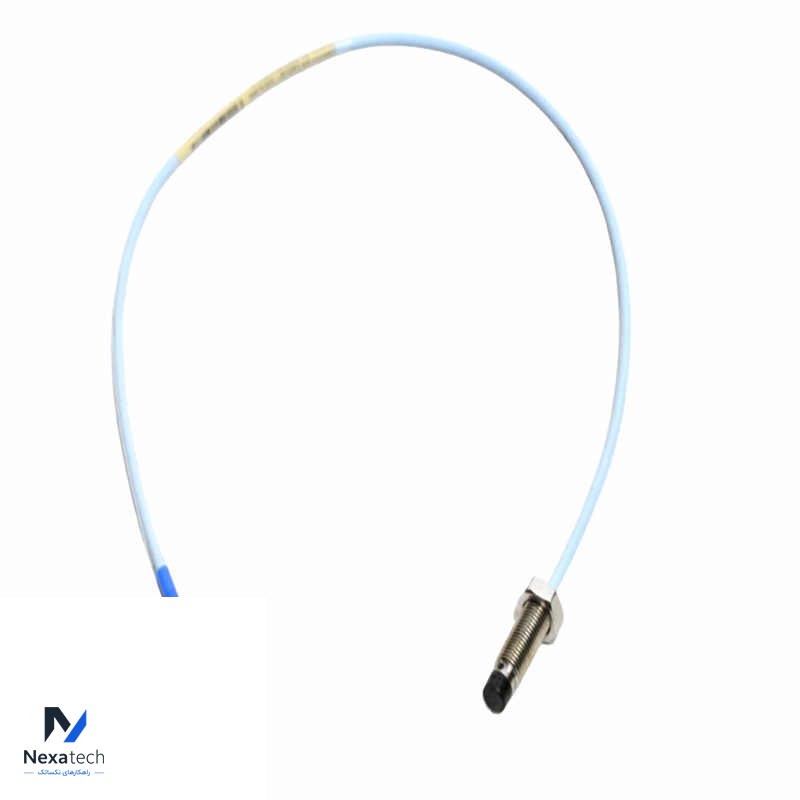

Bently Nevada 330104-00-20-10-02-00 3300 XL 8 mm Proximity Probes

The Bently Nevada 330104-00-20-10-02-00 is a model of the 3300 XL 8 mm Proximity Probe, a part of Bently Nevada’s machinery protection system. This system is designed to monitor the condition of critical rotating machinery by measuring shaft displacement and vibration.

Overview:
Model Number: 330104-00-20-10-02-00
Series: 3300 XL 8 mm Proximity Probe
System: Bently Nevada 3300 XL Series
Key Features:
Probe Tip Diameter: 8 mm
Probe Length: 20 meters
System Length: 10 meters (cable length from probe to proximitor sensor)
Connector Type: Miniature coaxial connector
Thread Size: M10x1
Agency Approvals:
Complies with API 670 requirements for machinery protection systems.
Suitable for use in hazardous areas when connected to an appropriate intrinsically safe system.

Specifications:
Measurement Range: Typically used for measuring shaft vibration and position within a range of 2 mm.
Temperature Range:
Operating: -35°C to +177°C (-31°F to +351°F)
Storage: -51°C to +177°C (-60°F to +351°F)
Environmental Protection:
Rated for IP68, ensuring resistance to dust and water, making it suitable for harsh industrial environments.
Material:
The probe body is typically made from stainless steel, offering durability and resistance to corrosion.
Frequency Response:
0 to 10 kHz for accurate measurement of dynamic events.
