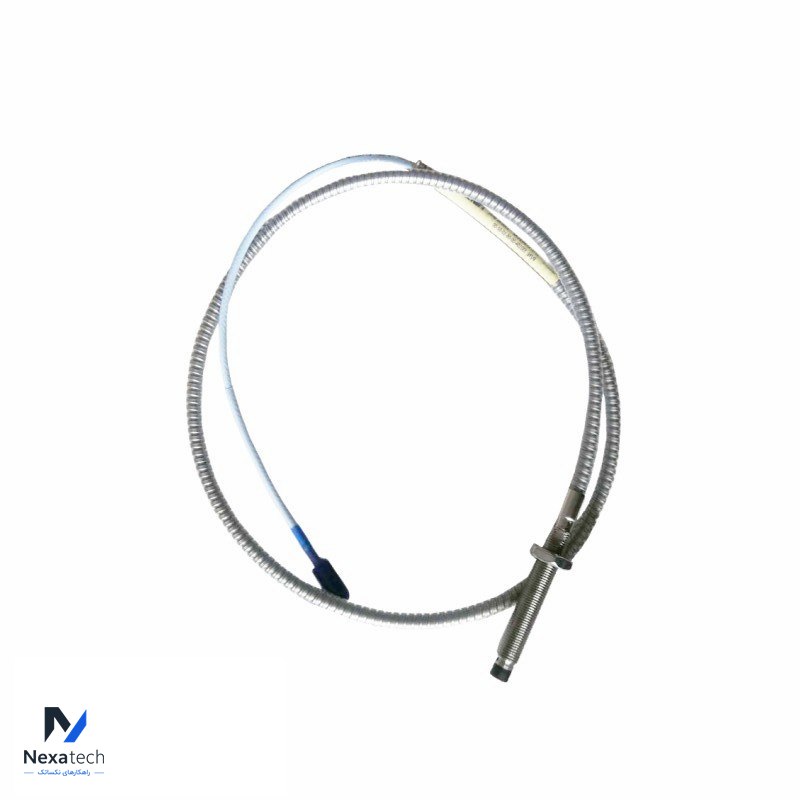

Bently Nevada 330104-00-05-05-02-05 3300 XL 8 mm Proximity Probes

The Bently Nevada 330104-00-05-05-02-05 is an 8 mm Proximity Probe from the 3300 XL Series, designed for use in machinery protection and monitoring systems. It measures the displacement and vibration of rotating machinery, crucial for maintaining the health and efficiency of critical industrial equipment.

Overview:
Model Number: 330104-00-05-05-02-05
Series: 3300 XL
Type: 8 mm Proximity Probe
Key Features:
Probe Tip Diameter: 8 mm
Probe Length: Typically 5 meters (length of the probe itself), though it can be customized.
Cable Length: Usually includes a cable length of 5 meters (from probe to the proximitor sensor).
Connector Type: Miniature coaxial connector.
Thread Size: M10x1 (for mounting).

Specifications:
Measurement Range: Designed to measure shaft displacement and vibration within a range up to 2 mm.
Temperature Range:
Operating: Typically from -35°C to +177°C (-31°F to +351°F).
Storage: -51°C to +177°C (-60°F to +351°F).
Environmental Protection:
Rated for IP68, making it suitable for harsh industrial environments with protection against dust and moisture.
Material: Constructed from stainless steel, providing durability and resistance to corrosion.
Frequency Response:
Capable of measuring dynamic events with a frequency response up to 10 kHz.

The 330104-00-05-05-02-05 Proximity Probe is essential for integrating with Bently Nevada’s monitoring systems to provide comprehensive and accurate data on machinery conditions, supporting effective maintenance and operational strategies.
