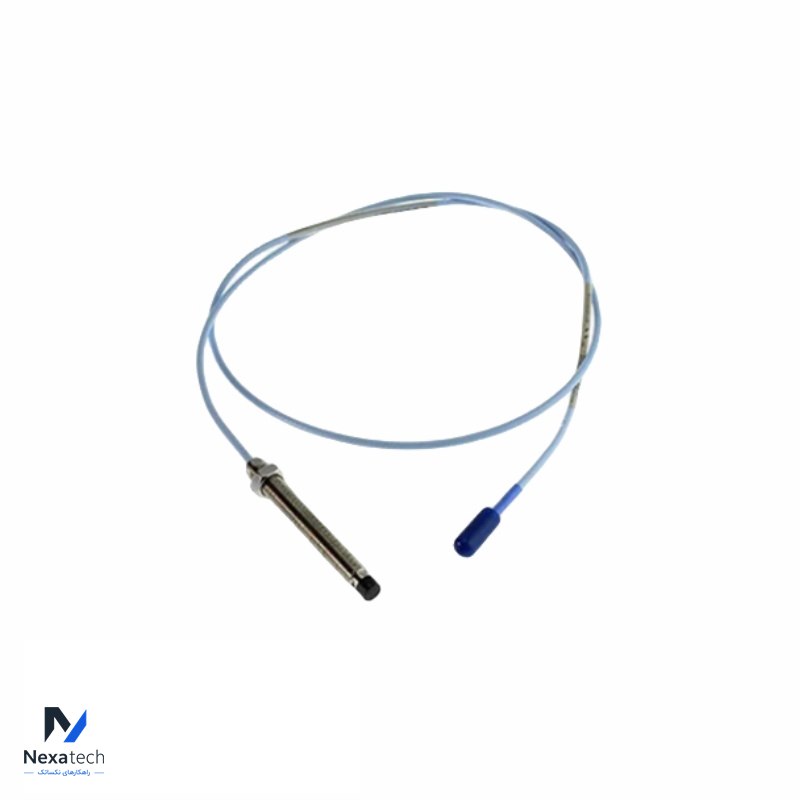

Name: Bently Nevada 330103-05-10-10-12-05 3300 XL 8 mm Proximity Probes
Brand: Bently Nevada
SKU: 330103-05-10-10-12-05
Availability: InStock

مشخصات فنی

Brand Name:	Bently Nevada
Model Number:	330103-05-10-10-12-05
Alternate Part Number	330103-05-10-10-12-05
Condition:	100% Original
Dimensions	2.6x25.3x24cm	Weight	0.8 kg
Description	3300 XL 8 mm Proximity Probes	Warranty:	12 Months

The Bently Nevada 330103-05-10-10-12-05 is a part of the 3300 XL 8mm Proximity Probe series, designed for high-performance machinery protection and condition monitoring in industrial applications. This proximity probe is known for its compliance with the API 670 standard, ensuring reliability, precision, and performance in critical systems such as turbines, compressors, and motors.

Eddy Current Technology:
The 3300 XL series uses eddy current technology for non-contact measurement of the distance between the probe tip and a conductive target, often used to monitor vibration or position in rotating machinery.

Interchangeability:
The system provides full interchangeability of components such as the probe, extension cable, and proximitor sensor. This feature eliminates the need for matching components or conducting bench calibration, simplifying maintenance and reducing downtime.

Temperature Stability:
The proximity probe offers excellent temperature stability, allowing it to maintain high accuracy even in environments with fluctuating or extreme temperatures.

Linear Range:
The standard 3300 XL 8mm system provides a nominal linear sensing range of 80 mils (2mm). This enables precise measurement of the gap between the probe and the target for critical machinery monitoring.

Ordering Information Breakdown:
330103: Model number of the 8mm probe.
05: Cable length of 5 meters.
10: Total system length of 10 meters (probe + extension cable).
10: Extension cable length of 10 meters.
12: Custom options (specific configuration for installation).
05: Connector type and configuration.
