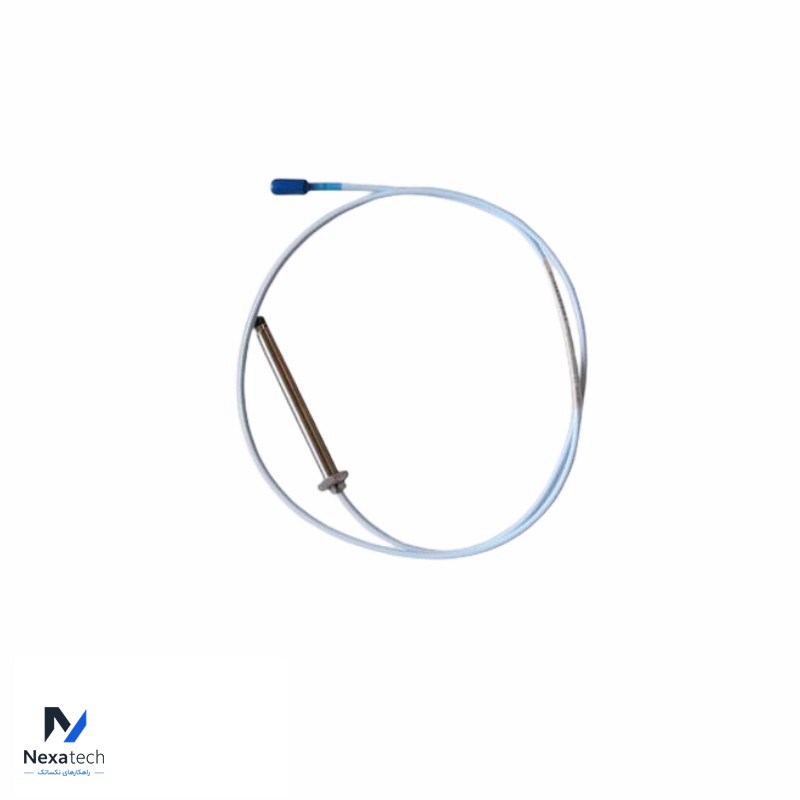

Bently Nevada 330103-00-13-10-02-00 3300 XL 8 mm Proximity Probes

The Bently Nevada 330103-00-13-10-02-00 is part of the 3300 XL Series and is an 8 mm Proximity Probe used in machinery protection and condition monitoring systems. It measures the displacement and vibration of rotating machinery, providing critical data for maintenance and operational decision-making.

Overview:
Model Number: 330103-00-13-10-02-00
Series: 3300 XL
Type: 8 mm Proximity Probe
Key Features:
Probe Tip Diameter: 8 mm
Probe Length: 13 meters (length of the probe itself)
System Length: 10 meters (cable length from the probe to the proximitor sensor)
Connector Type: Miniature coaxial connector
Thread Size: M10x1 (for mounting)

Specifications:
Measurement Range: Designed to measure shaft displacement and vibration within a range of 2 mm.
Temperature Range:
Operating: Typically -35°C to +177°C (-31°F to +351°F), though exact specifications can vary.
Storage: -51°C to +177°C (-60°F to +351°F)
Environmental Protection:
Rated for IP68, making it suitable for harsh industrial environments with resistance to dust and moisture.
Material: Stainless steel construction for durability and corrosion resistance.
Frequency Response:
Typically covers a frequency range up to 10 kHz for accurate dynamic measurement.

The 330103-00-13-10-02-00 probe is integral for ensuring accurate and reliable measurement of machinery conditions, aiding in predictive maintenance and minimizing unexpected downtime.
