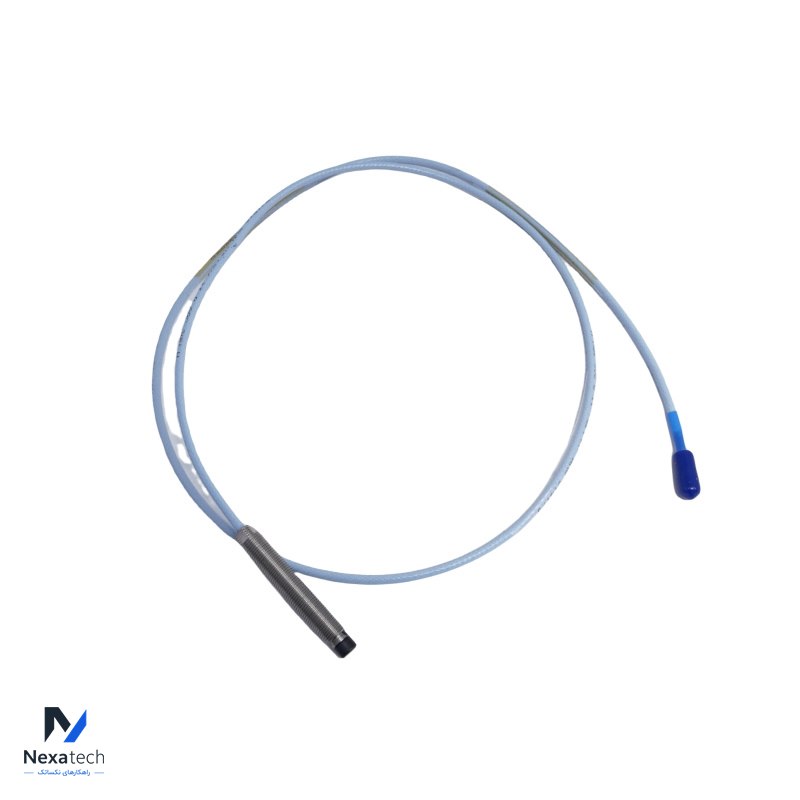

Bently Nevada 330103-00-06-05-02-00 3300 XL 8 mm Proximity Probes

The Bently Nevada 330103-00-06-05-02-00 is part of the 3300 XL 8mm Proximity Probe series, a high-performance system used for non-contact measurement of distance (displacement) between the probe and a conductive target, typically used in machinery vibration and position monitoring.

Eddy Current Technology:
The probe uses eddy current technology for non-contact measurement of the gap between the probe tip and a conductive target. This technology is ideal for measuring shaft displacement or vibration in rotating equipment such as turbines, compressors, and motors.

Interchangeability:
The 330103 is designed for full interchangeability with other 3300 XL probes, extension cables, and proximitor sensors, eliminating the need for component matching or bench calibration. This feature simplifies installation and maintenance, reducing system downtime.

Linear Range:
The 3300 XL 8mm system provides a nominal linear sensing range of 80 mils (2 mm), allowing for precise measurement of displacement or vibration in rotating machinery.

Ordering Information Breakdown:
330103: Model number of the 3300 XL 8mm proximity probe.
00: Standard probe configuration.
06: Total system length of 6 meters (including probe and extension cable).
05: 5-meter probe cable length.
02: 2 mm nominal linear sensing range.
00: Standard options, including connector type.
