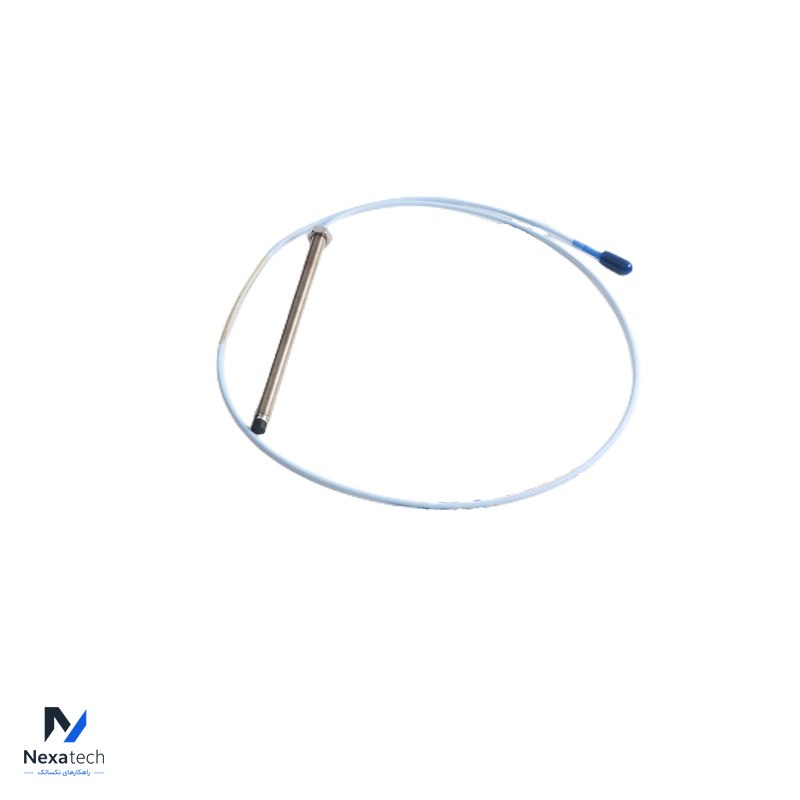

Bently Nevada 330101-00-60-10-02-00 3300 XL 8 mm Proximity Probes

The Bently Nevada 330101-00-60-10-02-00 is part of the 3300 XL Series and is an 8 mm Proximity Probe used for machinery protection and monitoring. It measures the displacement and vibration of rotating machinery, which is essential for detecting issues such as misalignment, unbalance, and bearing wear.

Overview:
Model Number: 330101-00-60-10-02-00
Series: 3300 XL
Type: 8 mm Proximity Probe
Key Features:
Probe Tip Diameter: 8 mm
Probe Length: 60 meters (length of the probe itself)
System Length: 10 meters (cable length from the probe to the proximitor sensor)
Connector Type: Miniature coaxial connector
Thread Size: M10x1 (for mounting)

Specifications:
Measurement Range: Designed to measure shaft displacement and vibration within a range typically up to 2 mm.
Temperature Range:
Operating: Generally -35°C to +177°C (-31°F to +351°F), though this can vary.
Storage: -51°C to +177°C (-60°F to +351°F)
Environmental Protection:
Rated for IP68, making it suitable for use in harsh environments with dust and moisture resistance.
Material: Constructed from stainless steel for durability and resistance to corrosion.
Frequency Response:
Covers a frequency range up to 10 kHz, allowing for accurate measurement of dynamic events.

System Compatibility:
Proximitor Sensor:
The 330101-00-60-10-02-00 probe is typically used with Bently Nevada’s Proximitor Sensors, which condition the output signal for integration into monitoring systems.
This probe is crucial for providing precise measurements that help prevent equipment failures, optimize maintenance strategies, and ensure the reliable operation of critical industrial machinery.
