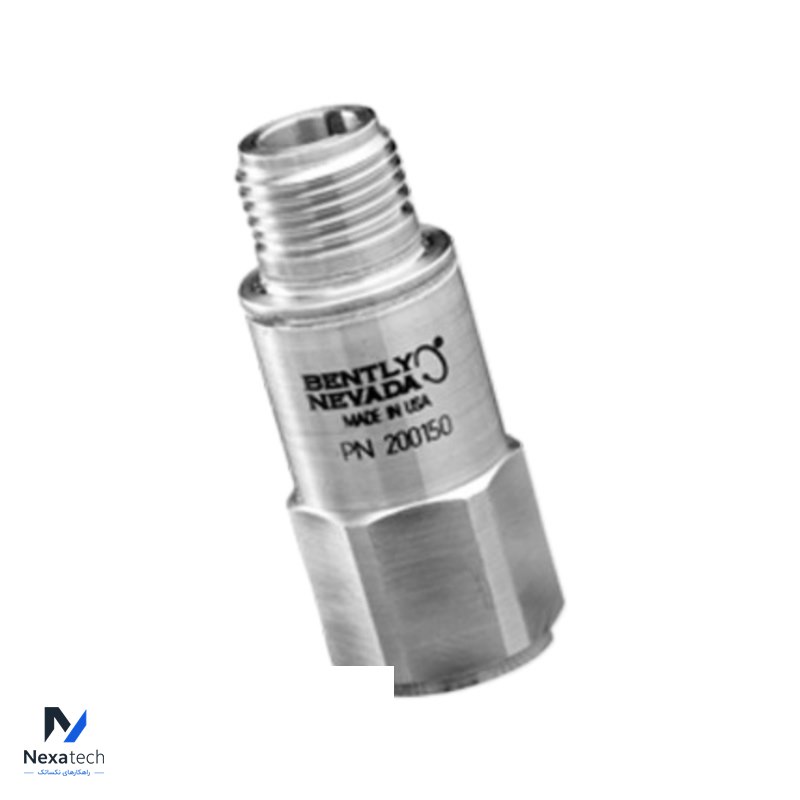

Bently Nevada 200152-15-10 Accelerometers

Specification

Brand Name

Bently Nevada

A: Cable Length
15 15 meters
B: Coupling Nut
10 Enhanced coupling nut.This option provides a better grip for tightening the cable to the accelerometer and is provided on the accelerometer end only
Mounted Resonant Frequency: >20 kHz
Amplitude Linearity: ±2%
Transverse Sensitivity: ≤7%
Excitation Voltage: 4.7 to 5.5 Vdc
Quiescent Current: <800 µA
Output Bias Voltage: +2.5 ± 0.23 Vdc
Electrical Isolation: 600 Vrms
Temperature Range: -40 ºC to +105 ºC (-40 ºF to +221 ºF)

Model Number

200152-15-10

Alternate Part Number

200152-15-10

Condition

100% Original

Dimensions

2x2x4.6cm

Description

Accelerometers

Weight

0.06 kg

Warranty

12 Months
