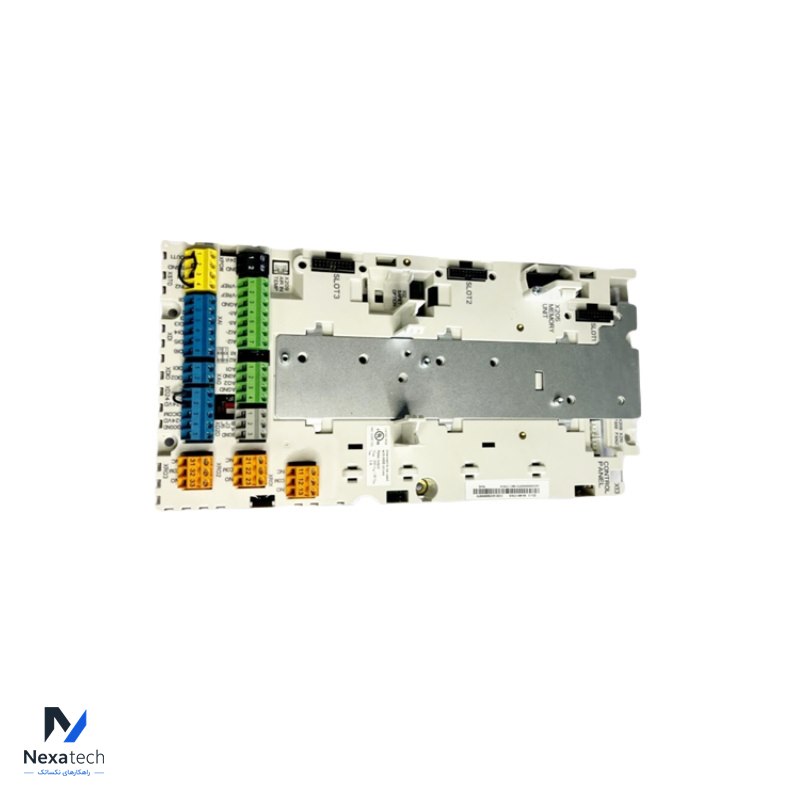

ABB ZCU-12 3AXD50000005751 Drive Mother board

Specifications
Power Supply (XPOW):

Voltage: 24 V (±10%) DC
Current: 2 A
Source: Supplied from the power unit of the drive or from an external power supply.
Connector: XPOW (pitch: 5 mm, wire size: 2.5 mm)
Relay Outputs (RO1...RO3, XRO1...XRO3):

Connector Pitch: 5 mm
Wire Size: 2.5 mm
Voltage Ratings: 250 V AC / 30 V DC
Current Rating: 2 A
+24 V Outputs (XD24:2 and XD24:4):

Connector Pitch: 5 mm
Wire Size: 2.5 mm
Total Load Capacity: 4.8 W (200 mA / 24 V) minus the power taken by DIO1 and DIO2.
Digital Inputs (DI1...DI6, XDI:1 ... XDI:6):

Specification: Additional details typically include input voltage range, types of signals accepted, and impedance specifications (please confirm if you need more detailed information).
Additional Information
Ensure proper wire gauge and connector specifications are adhered to for optimal performance.
The motherboard is designed for integration within ABB drive systems, facilitating control and monitoring functionalities.
