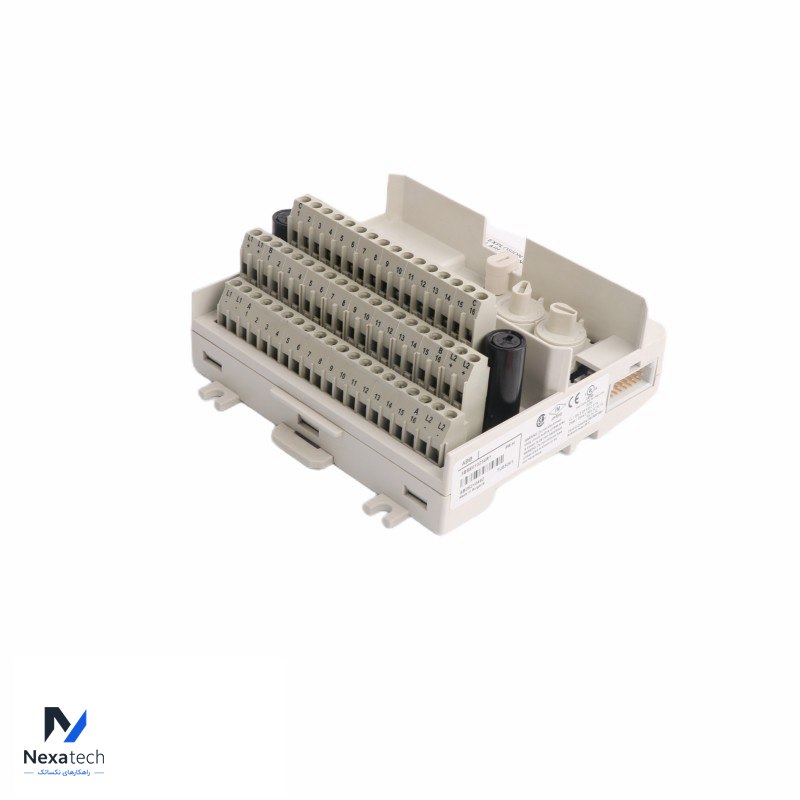

ABB TU830V1 3BSE013234R1 Extended Module Termination Unit

Connection: Terminal block
Channels: 16
Voltage: 50 V
Process connections: 56
Maximum current per I/O channel: 2 A
Maximum current process connection: 5 A
Dielectric test voltage: 500 V a.c.
Temperature, Operating: 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
Relative humidity: 5 to 95 %, non-condensing
Protection class: IP20 according to IEC 60529
