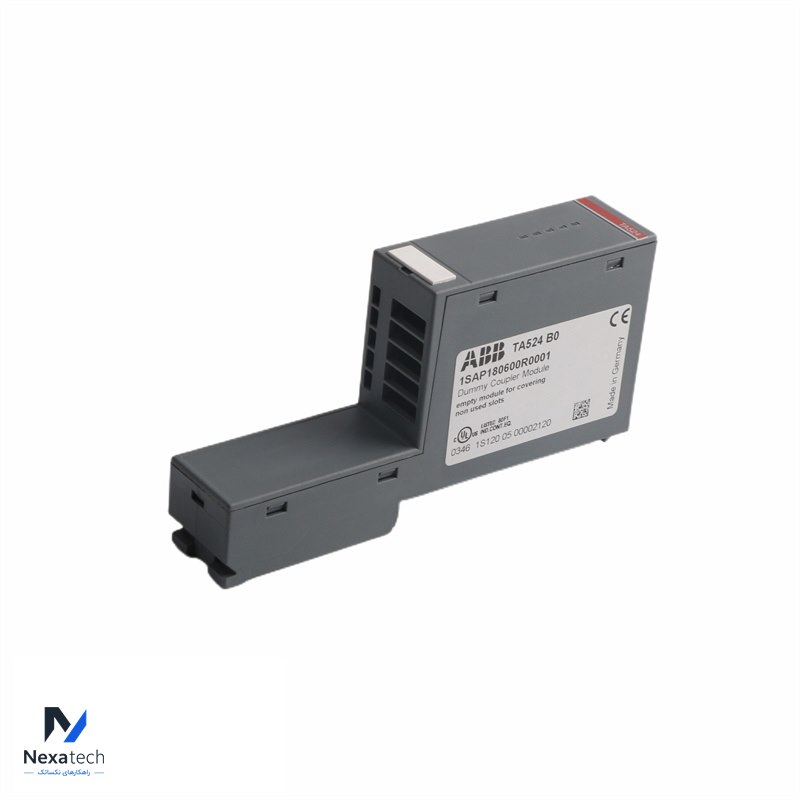

ABB TA524 1SAP180600R0001 Dummy Coupler Module

The ABB TA524 1SAP180600R0001 Dummy Coupler Module is designed for use in automation systems, providing a reliable solution for applications where physical connectivity is required but no active components are necessary. This module ensures proper signal termination and helps maintain the integrity of the system while facilitating easy integration.

General Information:
Extended Product Type:TA524
Product ID:1SAP180600R0001
ABB Type Designation:TA524

Dimensions:
Product Net Weight:0.059 kg
Product Net Depth / Length:62 mm
Product Net Height:135 mm
Product Net Width:28 mm
Gross Weight:0.08 kg
Package Level 1 Depth / Length:147 mm
Package Level 1 Height:40 mm
Package Level 1 Width:78 mm
Package Level 1 Units:1 carton

Technical:
Function:for TB5xx, TB5xxx and TF5xxx
Degree of Protection:IP20
Accessory Type:Mechanical: Cover
Ambient Air Temperature:Operation 0 ... +60 °C    Storage -40 ... +70 °C

Here are some common questions about the ABB TA524 1SAP180600R0001:
1.Function
Q: What is the main function of this dummy coupler module?
A: It is used for signal termination, ensuring system stability without active components.

2.Compatibility
Q: What systems or devices is this module compatible with?
A: It is typically compatible with ABB automation products and systems; please refer to technical documentation for specifics.

3.Installation Requirements
Q: What should be considered during installation?
A: Ensure proper connections according to the manual to avoid wiring errors.

4.Maximum Load
Q: What is the maximum load supported by this module?
A: Maximum load information is usually provided in the technical manual; please consult relevant documents.

5.Maintenance Needs
Q: Does it require regular maintenance?
A: Generally, it does not require frequent maintenance, but periodic checks on connection status are recommended.
