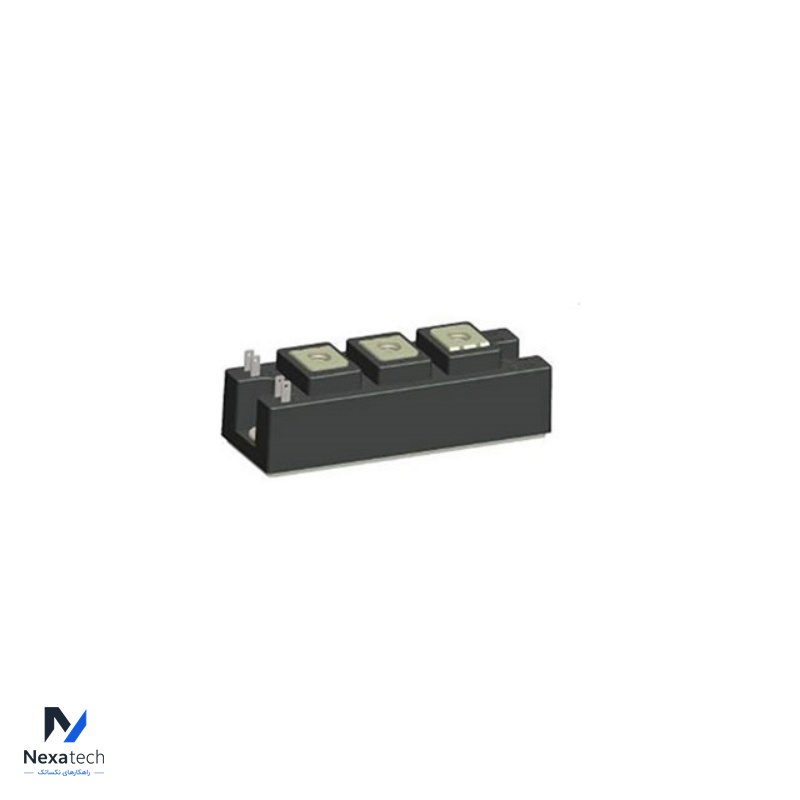

ABB SSKT160-08 RE400AEPJH1ABB-P THYRISTOR MODULE
توضیحات محصول
مشخصات فنی
| Specification | |
| Brand Name | ABB |
| Model Number | SSKT160-08 |
| Alternate Part Number | RE400AEPJH1ABB-P |
| Condition | 100% Original |
| Dimensions | 9.3x4.7x5cm |
| Description | THYRISTOR MODULE |
| Weight | 0.2kg |
| Warranty | 12 Months |
The ABB SSKT160-08 RE400AEPJH1ABB-P Thyristor Module is a high-power semiconductor device used to control and switch electrical currents in industrial applications. This module is designed to handle high voltages and currents, making it ideal for use in rectifiers, inverters, motor drives, and other power control systems. Known for its robustness and reliability, it is capable of efficiently managing high loads with minimal power losses, contributing to increased energy efficiency.
Detailed Product Parameters:
| arameter | Details |
| Manufacturer | ABB |
| Product Model | SSKT160-08 RE400AEPJH1ABB-P |
| Device Type | Thyristor Module |
| Peak Repetitive Off-State Voltage (Vdrm) | 800 V |
| Average On-State Current (IT(AV)) | 160 A |
| Surge Current (ITSM) | 3200 A (10 ms half-sine wave) |
| Gate Trigger Current (IGT) | < 200 mA |
| Gate Trigger Voltage (VGT) | < 2.5 V |
| Operating Temperature Range | -40°C to +125°C |
| Mounting Type | Screw terminal / Panel mount |
| Insulation Voltage | 2500 V AC |
| Weight | Approx. 0.5 kg (1.1 lbs) |
| Applications | Motor control, rectifiers, soft starters, and inverters |
| Compliance | CE, RoHS, and other industrial standards |
Frequently Asked Questions (FAQ):
What is the function of the ABB SSKT160-08 Thyristor Module?
This module controls high-power electrical loads by switching or regulating current in motor drives, rectifiers, inverters, and industrial control systems.
What is the maximum current it can handle?
The module can handle an average current of 160 A and surge currents up to 3200 A for short periods.
What voltage levels are supported?
The module supports a peak repetitive off-state voltage (Vdrm) of 800 V, suitable for high-voltage applications.
What is the recommended installation method?
The SSKT160-08 module is designed for panel mounting using screw terminals, ensuring a secure and reliable connection.
What industrial applications is it used for?
It is commonly used in motor drives, soft starters, rectifier circuits, and inverter systems for both industrial and commercial setups.
