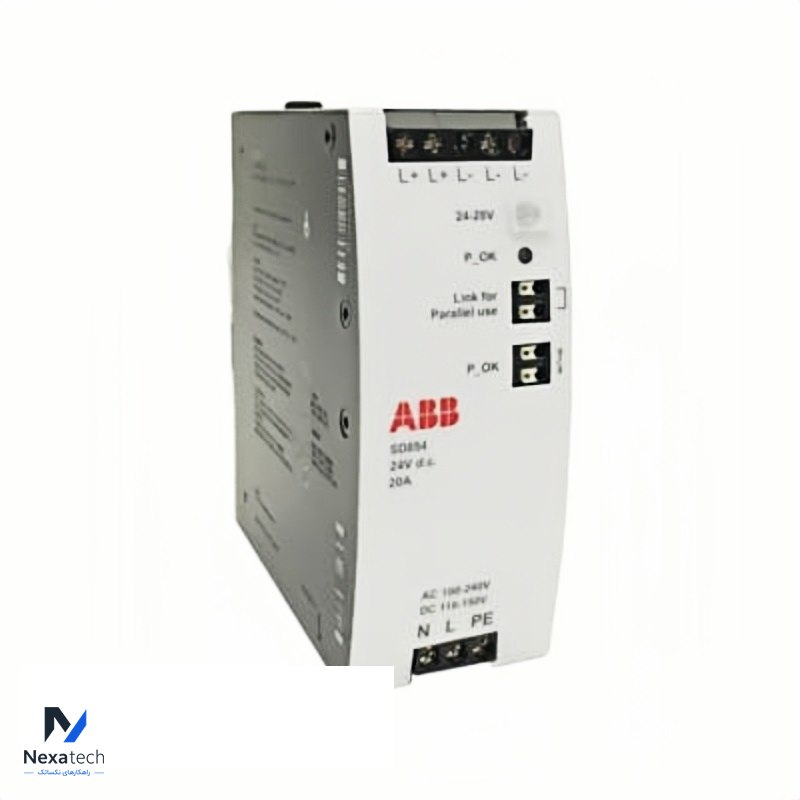

ABB SD854 3BSE088189R1 Power supply units

Name: ABB SD854 3BSE088189R1 Power supply units
Brand: ABB
SKU: SD854 3BSE088189R1
Availability: InStock

پارت‌نامبر: SD854 3BSE088189R1

توضیحات محصول

Power supply units

Specification
Brand Name	ABB	Rated Output Power: 480 W Rated Output Current: 20 A Primary Peak Inrush Current at Power On: < 10 A Output Voltage Regulation at Max Current: 100 mV Secondary Voltage Holdup Time at Mains Blackout: 32 ms Maximum Ambient Temperature: 70 °C Primary Recommended External Fuse: 10–20 A Output Overvoltage Protection: Max 32 V DC AC Input Current: 4.26 A / 2.23 A AC Inrush Current: 10 A / 4.5 A peak Protection Rating: IP20 according to IEC/EN 60529 Operating Ambient Temperature Range: -25 °C (-13 °F) to +70 °C (158 °F)



Model Number	SD854
Alternate Part Number	3BSE088189R1
Condition	100% Original
Dimensions	6x12.2x13cm
Description	Power supply units
Weight	0.7 kg
Warranty	12 Months
