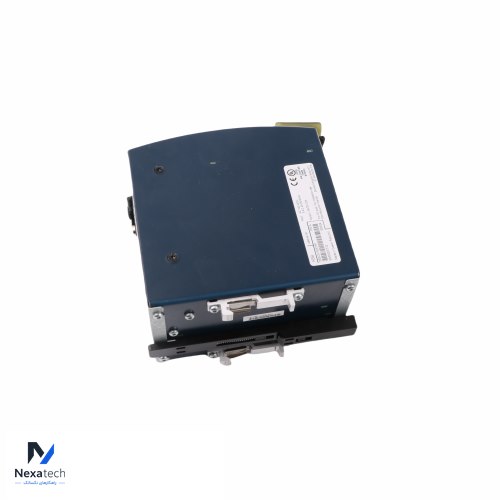

ABB SD834 3BSC610067R1 Power Supply Units

Rated Output Current: 20 A
Rated Output Power: 480 W
Mains Frequency: 50-60 Hz ± 6%
Primary Peak Inrush Current at Power On: < 13 A
Power Factor (at Rated Output Power): 0.95/0.90
Heat Dissipation: 40/31 W
Ripple (Peak to Peak): < 100 mV
Maximum Ambient Temperature: 55 °C
Primary: Recommended External Fuse: 10-20 A
Protection Rating: IP20 according to IEC 60529
Rated Output Voltage: d.c. 24 V
Maximum Output Current: 30 A < 4 s
Output Over Voltage Protection: < 37 V
