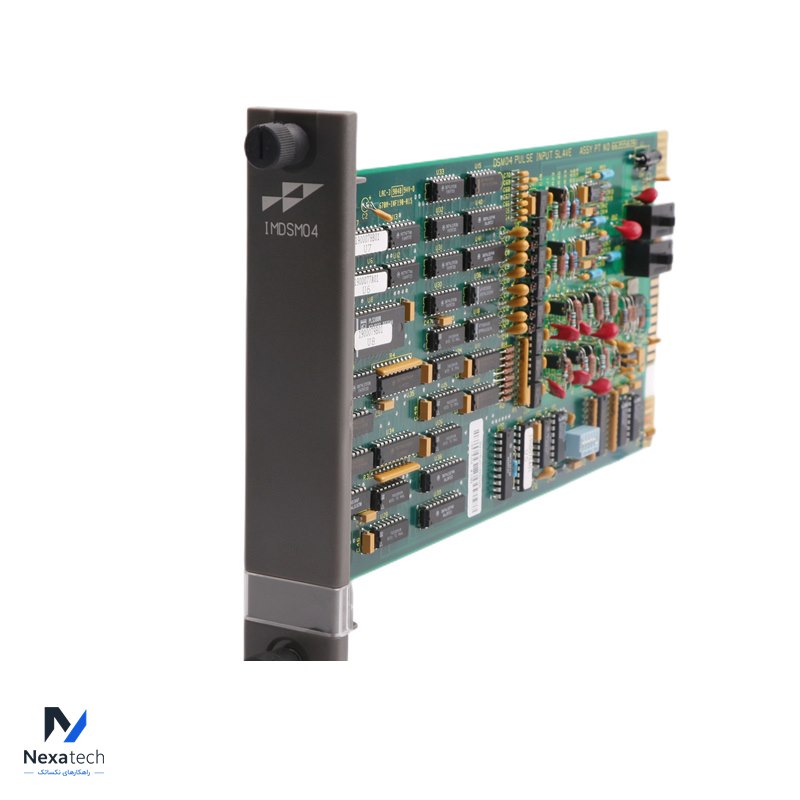

ABB IMDSM04 Pulse Input Slave Module

The ABB IMDSM04 Pulse Input Slave Module is designed for use within the Bailey Infi 90 control system. It facilitates the integration of pulse signals, converting them into digital signals for processing. This module operates with a +5 Vdc supply at 1.5A and a +24 Vdc supply at 80mA, making it suitable for various industrial applications.

Slave Module
IMDSM04
Model Type: Bailey Infi 90
Pulse Input Slave Module
Manufacturers
ABB, Bailey
Model(s)
ABB Bailey Infi 90, ABB Bailey Infi 90 and Net 90
Additional Information
IMDSM04 Pulse Input Slave Module, +5 Vdc, 1.5A, +24Vdc, 80mA

Frequently Asked Questions (FAQs)
What is the maximum pulse frequency the IMDSM04 can handle?
The maximum pulse frequency depends on the specific application; typically, it handles standard industrial pulse rates effectively.

Can the IMDSM04 be used with other systems?
It is primarily designed for the Bailey Infi 90 system but may work with compatible setups.

What is the operating temperature range?
The module generally operates in standard industrial temperature ranges, typically from -20°C to +60°C.

How is the module powered?
It requires a +5 Vdc and +24 Vdc power supply for operation.

Is there any configuration needed after installation?
Basic configuration may be necessary to integrate it with the control system properly.
