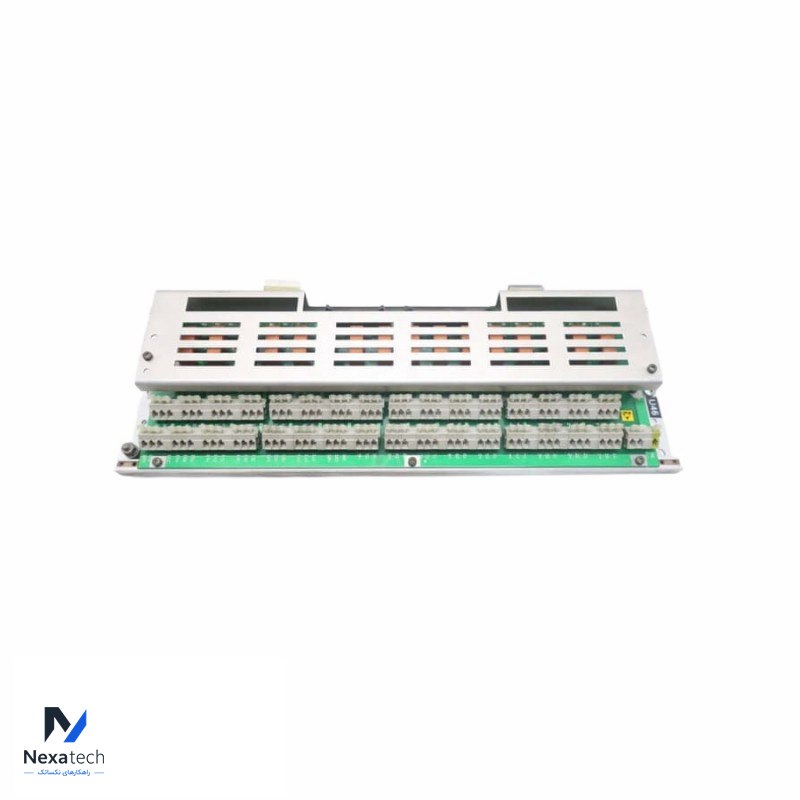

Name: ABB HIEE300690R0001 ARC093 AE01 Relay Output Card
Brand: ABB
SKU: ABB HIEE300690R0001
Availability: InStock

مشخصات فنی

Specification
Brand Name	ABB
Model Number	HIEE300690R0001 ARC093 AE01
Alternate Part Number	HIEE300690R0001 ARC093 AE01
Condition	100% Original
Dimensions	38.1x12.6x5.8cm
Description	Relay Output Card
Weight	0.98KG
Warranty	12 Months

ABB HIEE300690R0001 ARC093 AE01 is an industrial automation device produced by ABB, mainly used to control and monitor the output of electrical systems. This device is a relay output card with high reliability and accurate signal processing capabilities. It is widely used in automation control systems to achieve remote control and protection of electrical equipment.

Description:

Part Number: HIEE300690R0001
Model: ARC093 AE01 Relay Output Card
Brand: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

FAQ：

1.How can I verify if the ABB HIEE300690R0001 ARC093 AE01 is receiving control signals correctly?

Check the input terminals for voltage using a multimeter, and ensure that the PLC or control system is configured to send signals to the card’s corresponding channels. You can also monitor the system’s diagnostics or status LEDs for communication errors.

2. What is the maximum load the ABB HIEE300690R0001 ARC093 AE01 can handle on its relay outputs?
The card’s relay outputs are typically rated for 2A at 30V DC or 250V AC. Exceeding these limits can damage the card. Always verify the load specifications and ensure they are within the recommended limits.

3.How do I troubleshoot a non-functional relay on the ABB HIEE300690R0001 ARC093 AE01?
To troubleshoot, first check the relay for physical damage or wear. Use a multimeter to check continuity and verify the relay is not stuck. If the relay is functional but not switching, inspect the control signals and wiring for issues such as misconfiguration or poor connections.
