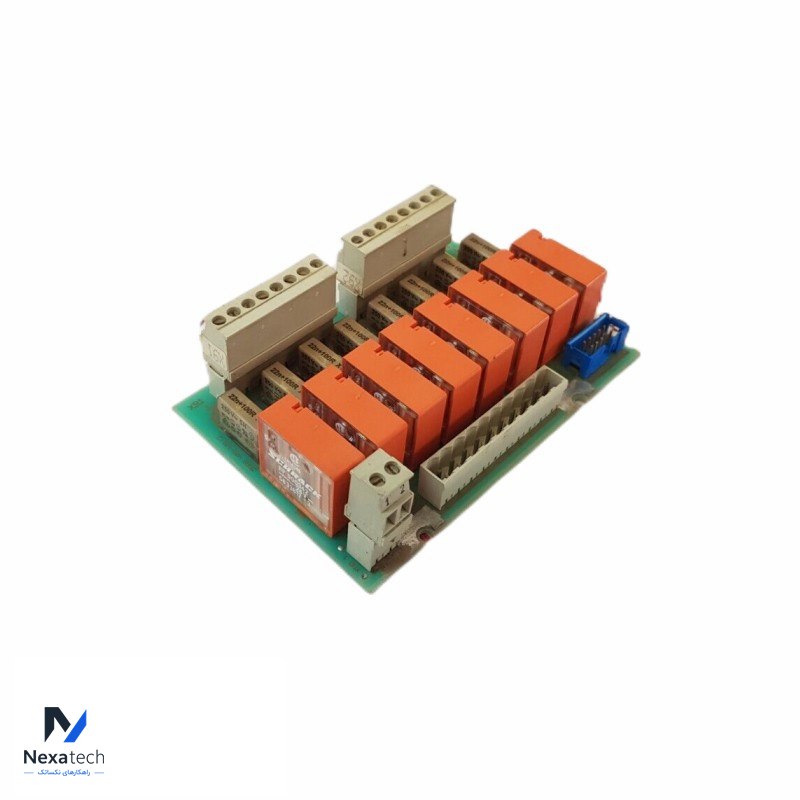

ABB DSTD108L 57160001-ABW Connection unit

General Information
Product ID: 57160001-ABW
ABB Type Designation: DSTD 108L
Catalog Description: DSTD 108L Connection Unit, 8 channels for low current
Long Description: The DSTD 108L Connection Unit features 8 relay channels designed for reliable low current applications.
Specifications
Input Voltage: 24 V DC
Output Voltage: 24-250 V AC/DC
Relay Data:
Max Load Current: 200 mA
Min Load Current: 1 mA or 0.05 VA
Breaking Capacity:
AC: 5 VA at cos φ > 0.4
DC: 5 W at L/R < 40 ms

Frequently Asked Questions (FAQs)
What types of loads can I connect to the DSTD 108L?
You can connect low current AC and DC loads within the specified voltage and current ratings.

Can the unit be used for high current applications?
No, it is specifically designed for low current applications. Exceeding the ratings may damage the unit.

What is the purpose of the relay channels?
The relay channels allow for the control of various devices by switching electrical circuits.

Is it suitable for outdoor use?
It is typically intended for indoor use; consult the manual for environmental specifications.
