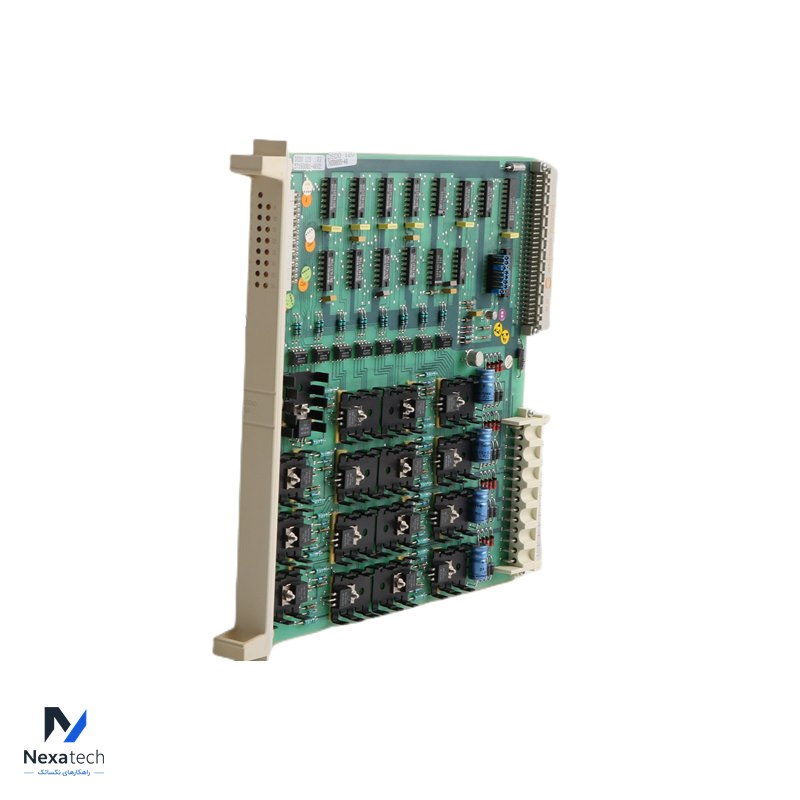

ABB DSDO120 57160001-AK Digital Output Module

ABB DSDO120 (57160001-AK) is a digital output module designed specifically for ABB Advant OCS and Advant S100 I/O systems. This module provides 16 channels of digital output, with a working voltage range of 24-48 V DC, a maximum current of 1 A per channel, and has optoelectronic isolation characteristics to ensure safety and reliability. The DSDO120 adopts a compact design, suitable for installation in control cabinets, and each output channel is usually equipped with LED indicator lights for real-time monitoring of output status. This module is widely used in industrial automation and can effectively control actuators, relays, and signal equipment.

ABB DSDO120 (5716001-AK) Digital Output Module Specification

Model: DSDO120

Number of channels: 16 channels

Voltage range: 24-48 V DC

Maximum current: 1 A per channel

Output type: Digital output

Isolation: photoelectric isolation

Indicator lights: Each output channel is equipped with LED indicator lights

Size: Compact design, suitable for control cabinet installation

Compatibility: Suitable for ABB Advant OCS and Advant S100 I/O systems

Common questions about ABB DSDO120 (57160001-AK):


What are the input power requirements for DSDO120?
The working voltage is 24-48 V DC.

What is the maximum load for each output channel?
The maximum current for each channel is 1 A.

Does this module have isolation characteristics?
Yes, DSDO120 has photoelectric isolation function to ensure safety.

Can the output status be monitored?
Each output channel is equipped with LED indicator lights for real-time monitoring.

What systems is DSDO120 compatible with?
This module is designed specifically for ABB Advant OCS and Advant S100 I/O systems.

What should be noted when installing this module?
Due to its compact design, it ensures sufficient space for installation in the control cabinet.

What is the operating temperature range of this module?
The specific working temperature range is usually provided in official documents. Please refer to relevant materials for detailed information
