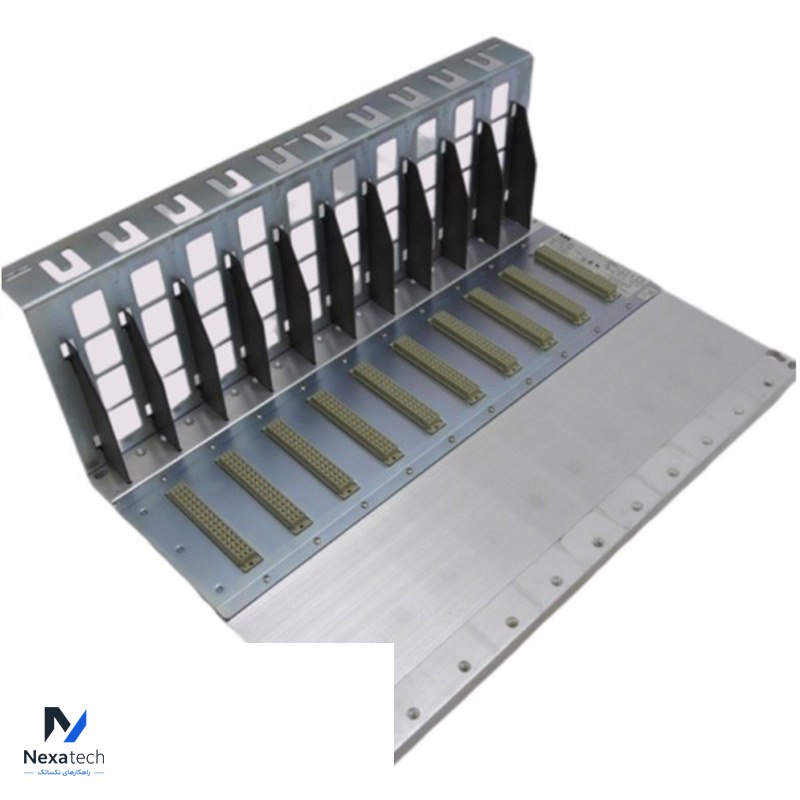

ABB DRA02 0369673M-EXC Card Rack
توضیحات محصول
مشخصات فنی
| Specification | |
| Brand Name | ABB |
| Model Number | DRA02 |
| Alternate Part Number | 0369673M-EXC |
| Condition | 100% Original |
| Dimensions | 31.1x2.7x48.3cm |
| Description | Card Rack |
| Weight | 3.5kg |
| Warranty | 12 Months |
The ABB DRA02 0369673M-EXC Card Rack is a communication module rack designed for use in ABB and Hartmann & Braun (H&B) systems, particularly in Freelance 2000 Distributed Control Systems (DCS). It serves as a modular platform to accommodate up to 10 individual modules, such as communication cards, I/O modules, or controllers. The DRA02 rack simplifies the integration of different system components, enhancing flexibility, scalability, and maintenance in industrial automation environments.
Detailed Product Parameters:
| Parameter | Details |
| Product ID | 0369673M-EXC |
| Model Type | 37411-4-0369673 |
| Type Designation | DRA02 |
| Catalog Description | Exchange of DRA02, Rack with 10 module slots |
| Product Type | Communication Module Rack |
| Number of Slots | 10 slots |
| Compatible Systems | ABB H&B Freelance 2000 |
| Manufacturers | ABB, Hartmann & Braun |
| Estimated Shipping Dimensions | 13.0" x 10.0" x 19.0" (33 cm x 25.4 cm x 48.3 cm) |
| Weight | 11 lbs (5.0 kg) |
| Mounting Method | Rack-mounted in control cabinets |
| Use Case | Replacement or exchange of existing DRA02 racks |
Frequently Asked Questions (FAQ):
What is the function of the DRA02 Card Rack?
The DRA02 card rack houses up to 10 modules, such as I/O cards or communication interfaces, providing a reliable platform for control and communication modules in ABB’s Freelance 2000 DCS.
What systems are compatible with the DRA02 Rack?
It is primarily used with the ABB H&B Freelance 2000 distributed control system.
What is the weight and size of the rack?
The rack weighs 5.0 kg (11 lbs) and measures 13" x 10" x 19" (33 cm x 25.4 cm x 48.3 cm), making it compact enough for industrial control cabinets.
How many modules can the DRA02 rack hold?
It supports up to 10 module slots for communication cards, I/O modules, or controllers.
Is the rack easy to replace?
Yes, the DRA02 is designed for exchange and replacement during system upgrades or maintenance to minimize downtime.
