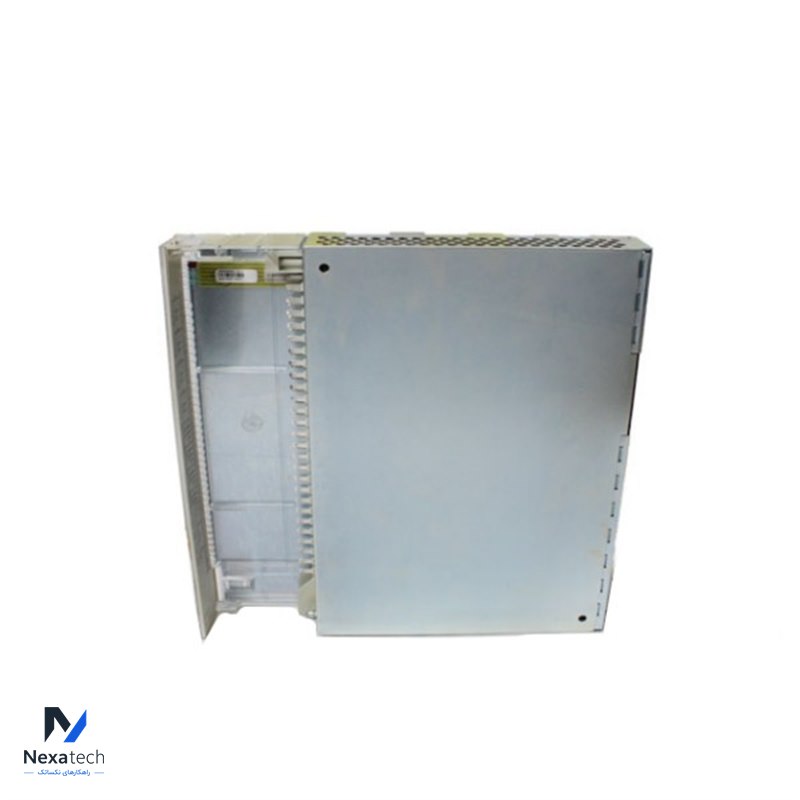

ABB DO620 3BHT300009R1 Digital Output Module

The DO620 (3BHT300009R1) is a digital output module used in ABB's 800xA control system. Here are the key specifications and features:

Specifications:
Outputs: Typically 16 channels of digital outputs.
Output Type: Relay or transistor outputs, depending on configuration.
Voltage Rating: Commonly operates with a supply voltage of 24 V DC.
Current Rating: Each output channel can usually handle a specified maximum current (e.g., 0.5 A or 1 A).
Isolation: Channels are often isolated from each other to prevent cross-talk and protect against faults.
Characteristic:
Status Indicators: LED indicators for each output to show operational status.
Fault Tolerance: Designed for reliability in industrial applications.
Configuration: Supports various configuration options through the 800xA software environment.
Integration: Can integrate seamlessly with other modules in the 800xA system.
Applications:
Used for controlling various devices in industrial automation, such as actuators, valves, and other control elements.
