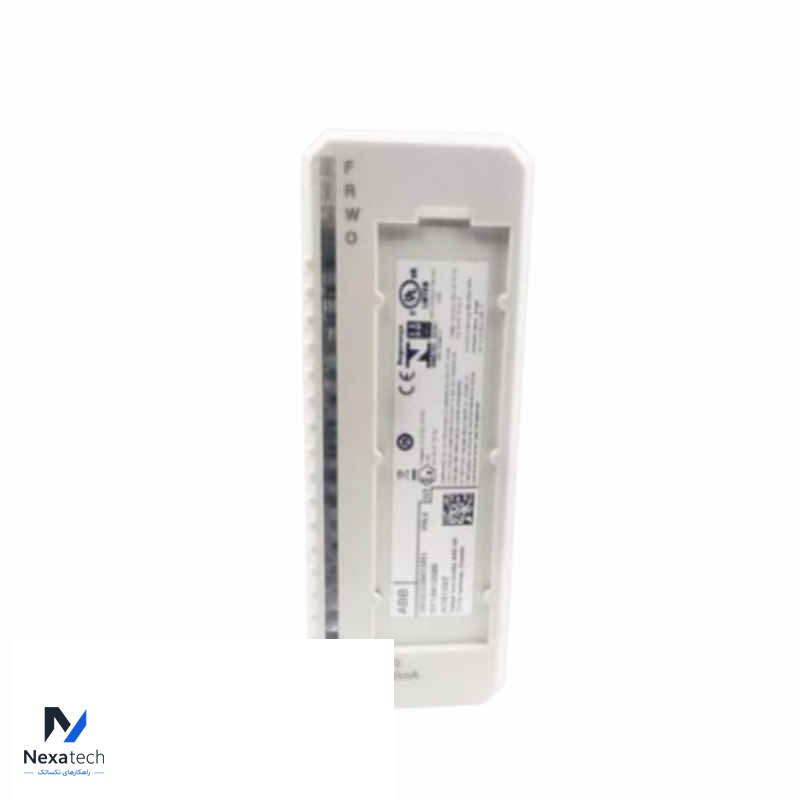

ABB AO810 3BSE008522R1 Analog Output Module

Number of Output Channels: 8
I/O Current, DC: 20 mA
A/D Resolution: 14 bit
Impedance: 850 OHM
Update Cycle Time: ≤ 2 ms
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: 2.3 W
Current Consumption +5 V Modulebus: Max 70 mA
Temperature, Operating: 0 to +55 °C (+32 to +131 °F)
Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
Relative Humidity: 5 to 95 %, non-condensing
Protection Class: IP20 according to IEC 60529
