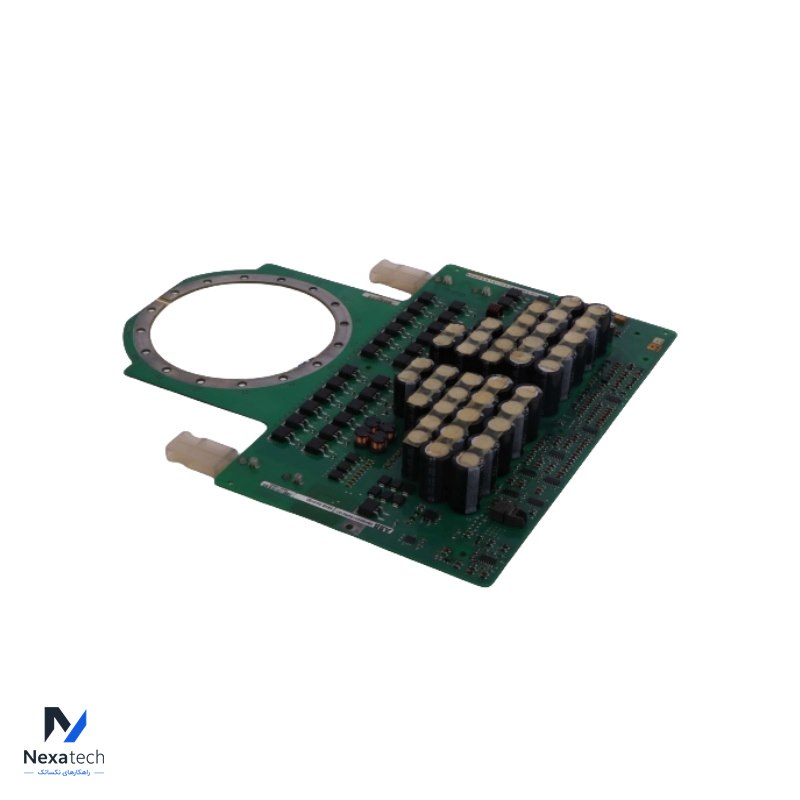

ABB 5SHX06F6004 3BHB003387R0101 GVC703AE01 Controller Circuit Board

The ABB 5SHX06F6004 3BHB003387R0101 GVC703AE01 is a high-performance control and relay module used in industrial automation systems. It is designed to manage and monitor electrical devices by receiving control signals from a PLC or other control system. The module provides reliable signal processing for controlling outputs like motors, lights, or other equipment, and is often used in ABB’s automation solutions for manufacturing, energy, and process industries.

Description:
Part Number: 5SHX06F6004
Model: GVC703AE01 Control and Relay Module
Brand: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

FAQ：

1.How do I integrate the ABB 5SHX06F6004 GVC703AE01 module into my control system?
To integrate the module, assign it a unique address in the control system, configure the I/O mapping, and connect it to the appropriate field devices. Follow the manual for proper wiring and communication setup to ensure seamless operation.

2.What is the maximum current rating for the relay outputs of the ABB 5SHX06F6004 GVC703AE01?
The relay outputs on the GVC703AE01 are typically rated for 2A at 250V AC or 30V DC. It is important to ensure that the connected loads do not exceed these ratings to prevent damage to the module.

3.How can I troubleshoot communication issues with the ABB 5SHX06F6004 GVC703AE01?
If communication issues occur, check the wiring and ensure that the module is properly seated in the I/O slot. Verify the communication settings in the control system and check the module’s diagnostic LEDs for error indications.
