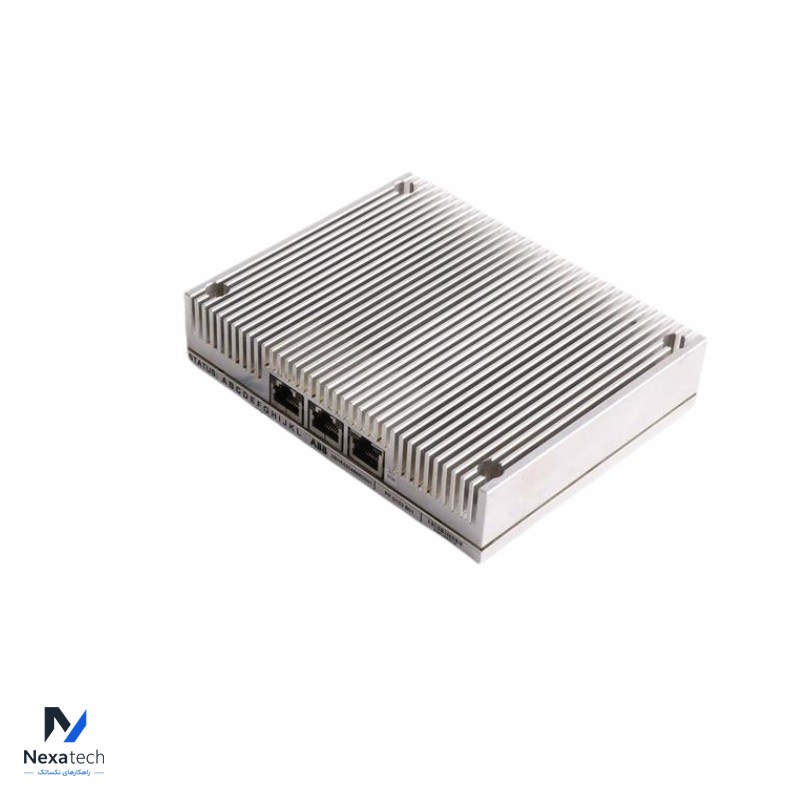

ABB 3BHE020455R0001 PPD103 B01 Control System

General Information
Product ID:3BHE023784R2630
ABB Type Designation:
Catalog Description:PP D113 B01-26-111000: AC 800PEC
Product Net Depth / Length:145 mm
Product Net Height:450 mm
Product Net Weight:2.59 kg
Product Net Width:100 mm
AC 800PECThe high-performance control system formodel-based design
The AC 800PEC provides the unique combination of featuresrequired in demanding applications:
− Short cycle times down to 100 μs
− High processing power− Fast communication and I/O
− Programming tools:
− System engineering with IEC61131-3 languages using ABB’s Control Builder, either as Compact or Professional version
− Product & control development using MATLAB® /Simulink® for model-based design, easily bridging thegap from simulation to implementation
− Full integration into ABB’s System 800xA
− Innovative and flexible use of FPGAs to include protocolsand application functionality in the devices withoutcreating additional processor load

− Optical communication
− Industrial grade hardware with no moving parts
− Long life cycle, easy upgrading

Common Questions:
What are the main features of the PPD103 B01?

It offers advanced control capabilities, real-time monitoring, and compatibility with a wide range of ABB products.
What applications is this control system suitable for?

Ideal for industrial automation, process control, and systems requiring precise monitoring and management.
How is the PPD103 B01 installed?

Installation typically involves mounting in a control cabinet and connecting it to the necessary input/output devices. Refer to the installation manual for detailed steps.

What are the communication protocols supported?

The system supports multiple industrial communication protocols, ensuring interoperability with existing systems.
Where can I find the technical documentation?

Technical documentation is available on the ABB website or through authorized ABB distributors.
